ND2000 Series

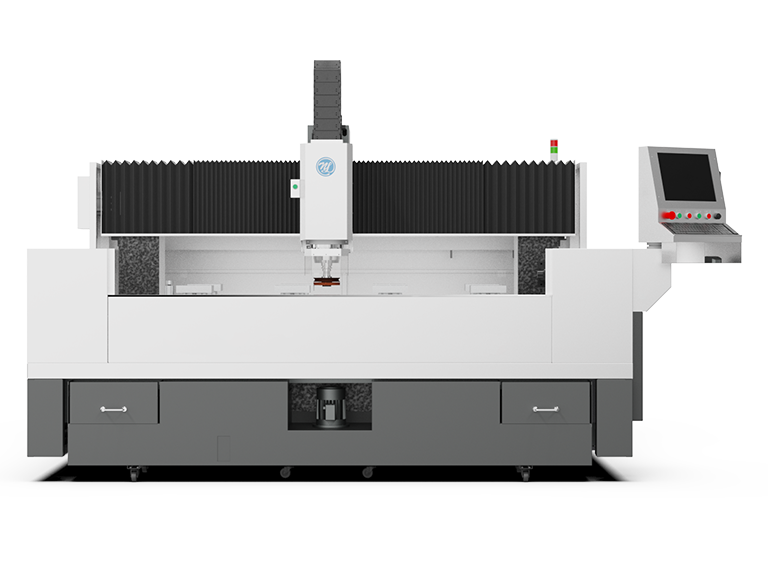

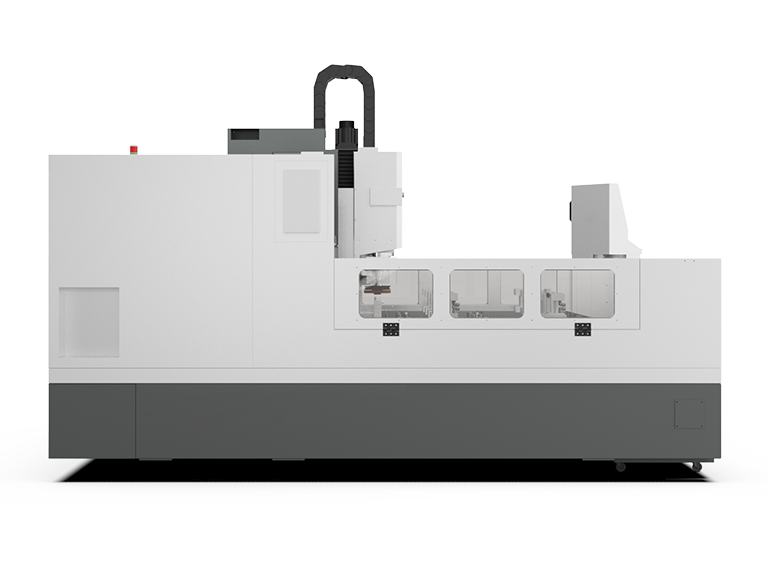

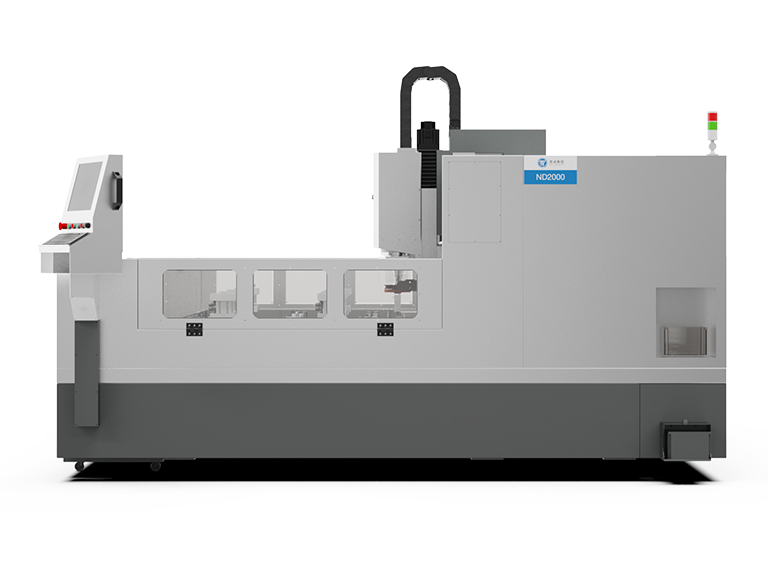

ND2000 Glass CNC Machine

▪ Applicable Industries: Car central control touch screen glass, Smart appliance glass, Smart home glass, Smart terminal protection glass, Smart security glass, Smart wearable glass, etc
▪ Applicable Material: Glass, Acrylic, Crystal, Non-metal
▪ Payment Terms: T/T L/C Visa Mastercard American Express Discover cards etc
▪ After-sale Service: Free professional machine operation training (Option for service in site)
▪ Supply Ability: 100 Sets per Month

PRODUCT DETAILS

ND2000 is suitable for precision processing of glass and non-metal products. The machine is based on granite body, gantry and guide rail bases. It is equipped with a high-precision screw guide rail and high-power/RPM spindle. The whole system is controlled by the servo and processing of multiple processes through programming completely. It can also be equipped with vacuum fixture, vacuum pump, air compressor, full cover, programming software.


ND2000 CNC glass machine has extensive performance characteristics. It is application for car central control touch screen glass, smart appliance glass, smart home glass, smart terminal protection glass, smart security glass, smart wearable glass industry. It main processing glass, acrylic, crystal, non-metal materials.


PRODUCT PARAMETERS

Standard
Option
Working distance(X/Y/Z axis) 2000x1200x150mm
Working table(X/Y/Z axis) 2000x1200mm
Max RPM 12000rpm
Power 11.0KW
Machine dimension 3300x3300x1880mm
Machine weight 8500kg
Programming software ArtCam AlphaCAM

PRODUCT ADVANTAGES

APPLICATION CASES

More +

RELATED MACHINE

QUALITY CONTROL

RENISHAW Laser Interferometer

High Precision Granite Square Ruler

Optical Measuring Machine

High Precision Granite Surface Plate Ruler

Leverage Dial Gauge

COMPANY VIEW

Assembly Area Panorama

Factory Area

Delivery Area

Stocking Area
