ND820 Series

ND820-3 Glass CNC Machine

▪ Applicable Industries: Car central control touch screen glass, Smart appliance glass, Smart home glass, Smart terminal protection glass, Smart security glass, Smart wearable glass, etc
▪ Applicable Material: Glass, Acrylic, Crystal, Non-metal
▪ Payment Terms: T/T L/C Visa Mastercard American Express Discover cards etc
▪ After-sale Service: Free professional machine operation training (Option for service in site)
▪ Supply Ability: 200 Sets per Month

PRODUCT DETAILS

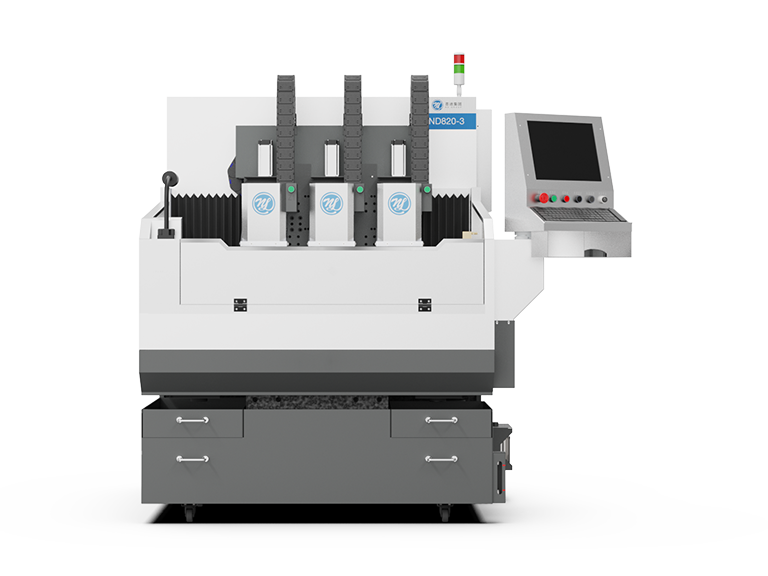

ND820-3 can process three work position at same time, it is suitable for precision processing of glass and non-metal products. The machine is based on granite body, gantry and guide rail bases. It is equipped with a high-precision screw guide rail and high-power/RPM spindle. The whole system is controlled by the servo and processing of multiple processes through programming completely. It can also be equipped with manipulator, vacuum fixture, vacuum pump, air compressor, full cover, programming software.


ND820-3 CNC glass machine has extensive performance characteristics. It is application for car central control touch screen glass, smart appliance glass, smart home glass, smart terminal protection glass, smart security glass, smart wearable glass industry. It main processing glass, acrylic, crystal, non-metal materials.

PRODUCT PARAMETERS

Standard
Option
Working distance(X/Y/Z axis) 280x500x90mm
Working table(X/Y/Z axis) 820x500mm
Max RPM 60000rpm
Power 1.8KW
Machine dimension (half cover) 1900x1480x2000mm
Machine weight (half cover) 2050kg
Full cover Complete enclosed protection
Programming software ArtCam AlphaCAM
Manipulator AT2
