ND1500 Series

ND1500 Glass CNC Machine

▪ Applicable Industries: Car central control touch screen glass, Smart appliance glass, Smart home glass, Smart terminal protection glass, Smart security glass, Smart wearable glass, etc
▪ Applicable Material: Glass, Acrylic, Crystal, Non-metal
▪ Payment Terms: T/T L/C Visa Mastercard American Express Discover cards etc
▪ After-sale Service: Free professional machine operation training (Option for service in site)
▪ Supply Ability: 200 Sets per Month

PRODUCT DETAILS

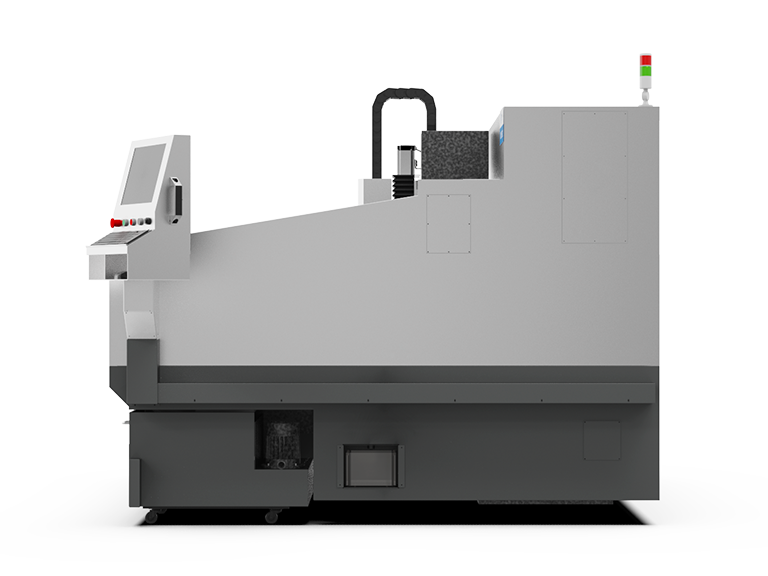

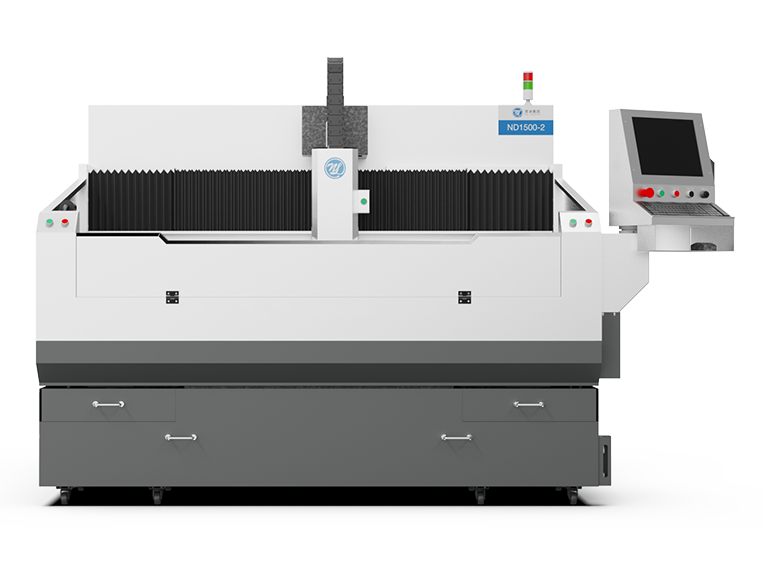

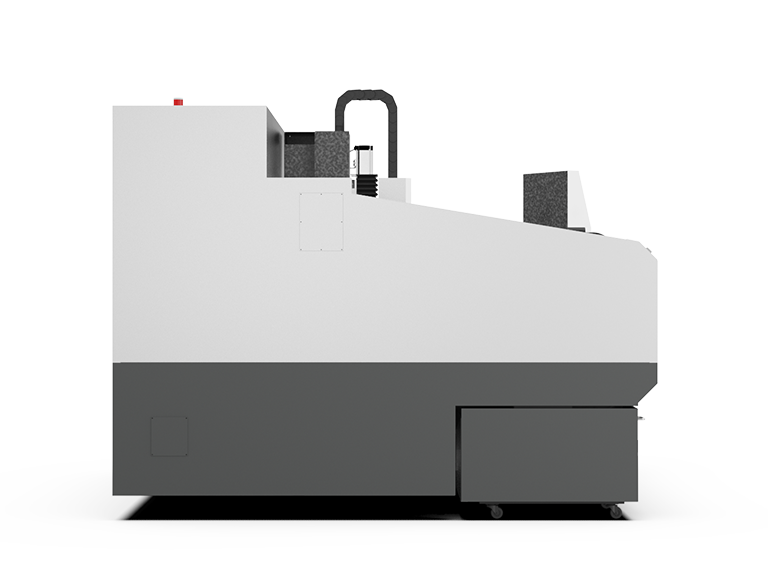

ND1500 is suitable for precision processing of glass and non-metal products. The machine is based on granite body, gantry and guide rail bases. It is equipped with a high-precision screw guide rail and high-power/RPM spindle. The whole system is controlled by the servo and processing of multiple processes through programming completely. It can also be equipped with CCD camera, vacuum fixture, vacuum pump, air compressor, full cover, programming software.


ND1500 CNC glass machine has extensive performance characteristics. It is application for car central control touch screen glass, smart appliance glass, smart home glass, smart terminal protection glass, smart security glass, smart wearable glass industry. It main processing glass, acrylic, crystal, non-metal materials.

PRODUCT PARAMETERS

Standard
Option
Working distance(X/Y/Z axis) 1500x1000x90mm
Working table(X/Y/Z axis) 1500x1000mm
Max RPM 60000rpm
Power 3.2KW
Machine dimension (half cover) 2750x2320x2000
Machine weight (half cover) 5500kg
CCD Camera Ultra high resolution
Programming software ArtCam AlphaCAM
Full cover Complete enclosed protection
