ND1200 Series

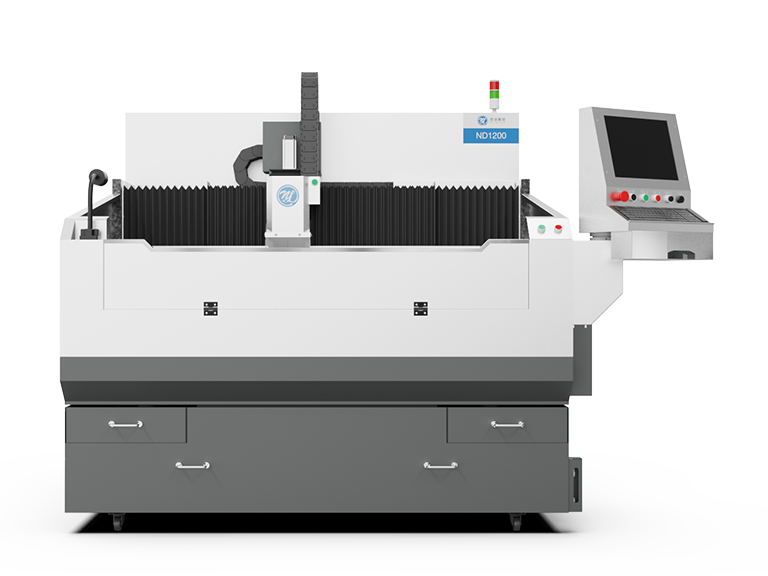

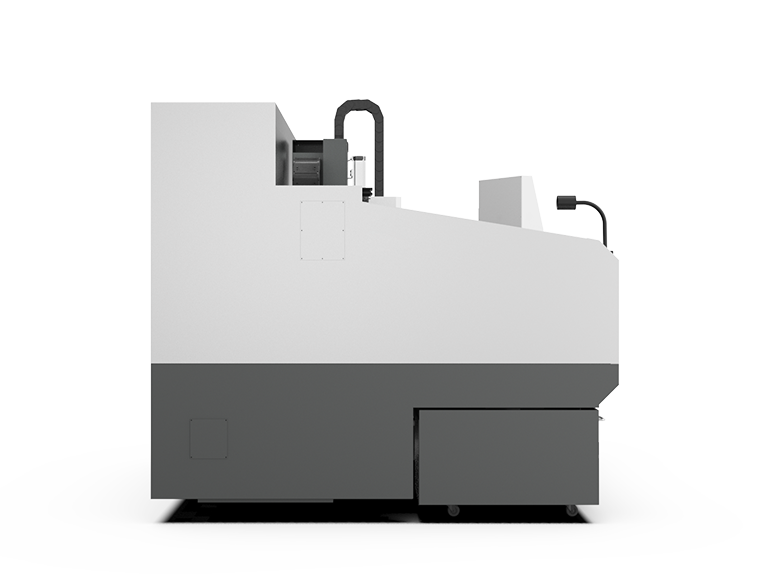

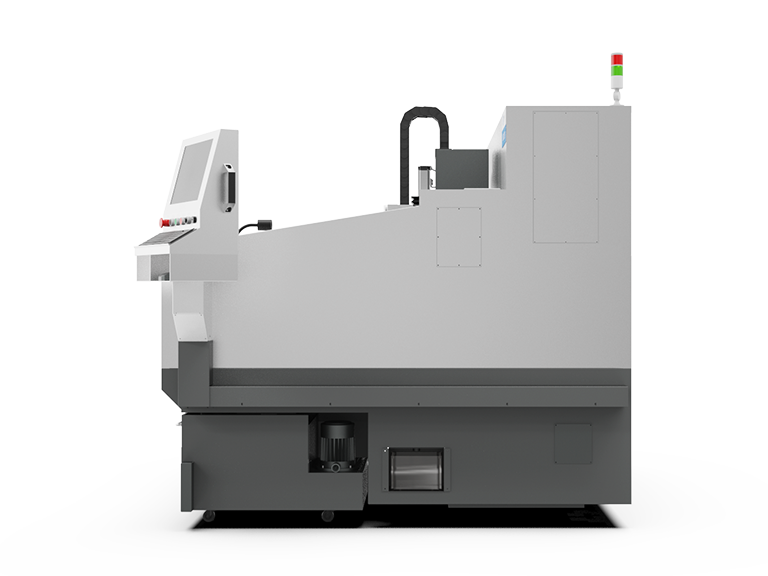

ND1200 Glass CNC Machine

▪ Applicable Industries: Car central control touch screen glass, Smart appliance glass, Smart home glass, Smart terminal protection glass, Smart security glass, Smart wearable glass, etc
▪ Applicable Material: Glass, Acrylic, Crystal, Non-metal
▪ Payment Terms: T/T L/C Visa Mastercard American Express Discover cards etc
▪ After-sale Service: Free professional machine operation training (Option for service in site)
▪ Supply Ability: 200 Sets per Month

PRODUCT DETAILS

ND1200 is suitable for precision processing of glass and non-metal products. The machine is based on granite body, gantry and guide rail bases. It is equipped with a high-precision screw guide rail and high-power/RPM spindle. The whole system is controlled by the servo and processing of multiple processes through programming completely. It can also be equipped with manipulator, CCD camera, vacuum fixture, vacuum pump, air compressor, full cover, programming software.


ND1200 CNC glass machine has extensive performance characteristics. It is application for car central control touch screen glass, smart appliance glass, smart home glass, smart terminal protection glass, smart security glass, smart wearable glass industry. It main processing glass, acrylic, crystal, non-metal materials.

PRODUCT PARAMETERS

Standard
Option
Working distance(X/Y/Z axis) 1200x800x90mm
Working table(X/Y/Z axis) 1200x800mm
Max RPM 60000rpm
Power 3.2KW
Machine dimension (half cover) 2350x1960x2000mm
Machine weight (half cover) 3900kg
CCD Camera Ultra high resolution
Full cover Complete enclosed protection
Programming software ArtCam AlphaCAM
Manipulator AT2
