Steel Counter Plat Processed By Big Size CNC Milling And Engraving Machine
Product Description
Project Name | ND1200 Series |
Positioning Accuracy(X/Y/Z Axis) | 0.008mm |
Repeat Positioning Accuracy(X/Y/Z Axis) | 0.005mm |
X/Y Axis Perpendicularity | 0.01mm |
Z/XY Axis Perpendicularity | 0.01mm |
Max. Feed Speed | 15m/min |
Max. Working Speed | 6m/min |
Travel X/Y/Z | 1200*800*150mm |
Rated Power X/Y/Z Axis | 850/850/850W |
Positive Pressure Air Flow/Pressure | 300L/min/0.6Mpa |
1.Machine Structure:
Our machine body, cross beam, base etc. are made of "Jinan Black" natural granite with all precision surfaces manual grinding to achieve and maintain stable structure and high precision.
2.High Precision Combination:
High-precision guideway, ball screw and mechanical parts are directly installed on the grinded surface of high-precision "Jinan Black" granite to achieve the best accuracy combination after assembly.
3.Control System:
Adopt professional control system with powerful tools managenent, compensation production, humanized interface, and automatic loading and unloading functions. The accuracy can be controlled and reached to μ level.
4.Drive System:
High-end bus absolute value drive system for all axes is equipped to ensure high accuracy in the drive process.
Finished Products
Our machine can process hot stamping dies, embossing dies, steel counter plate and so on.

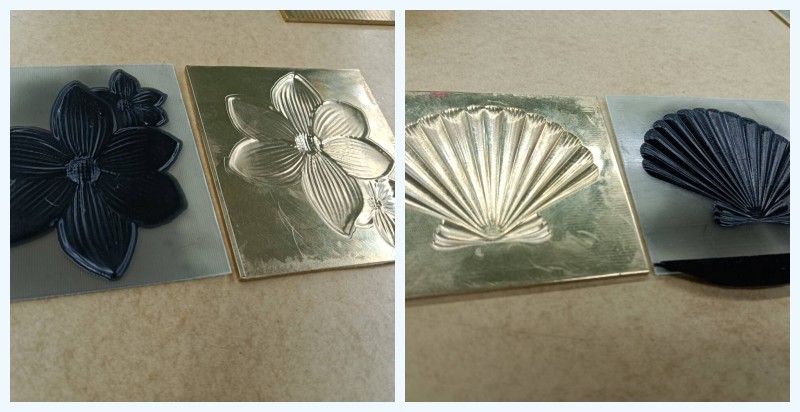

Emobssing dies:

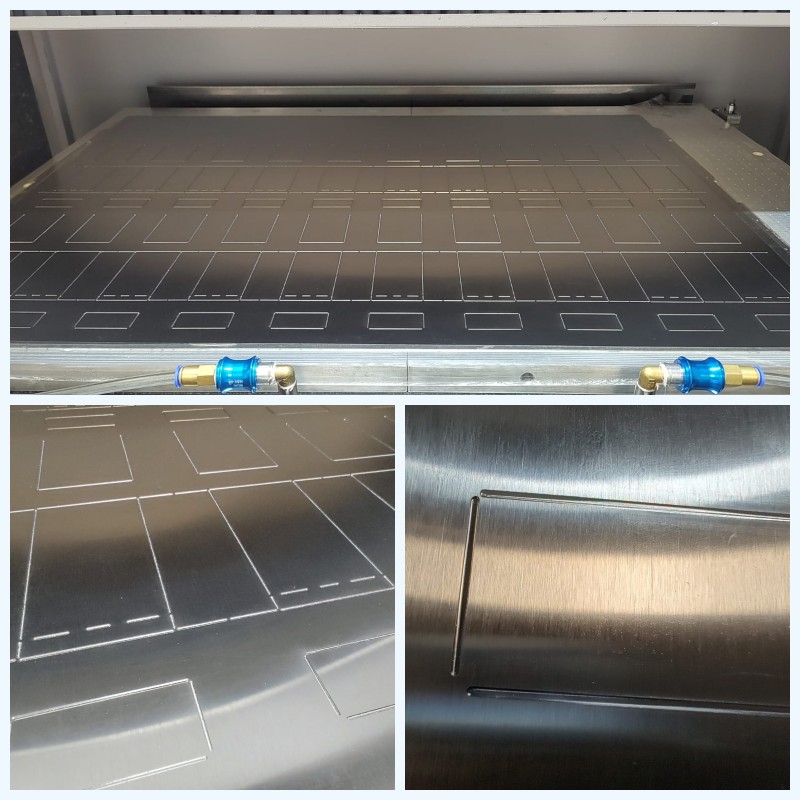

Steel counter plate:

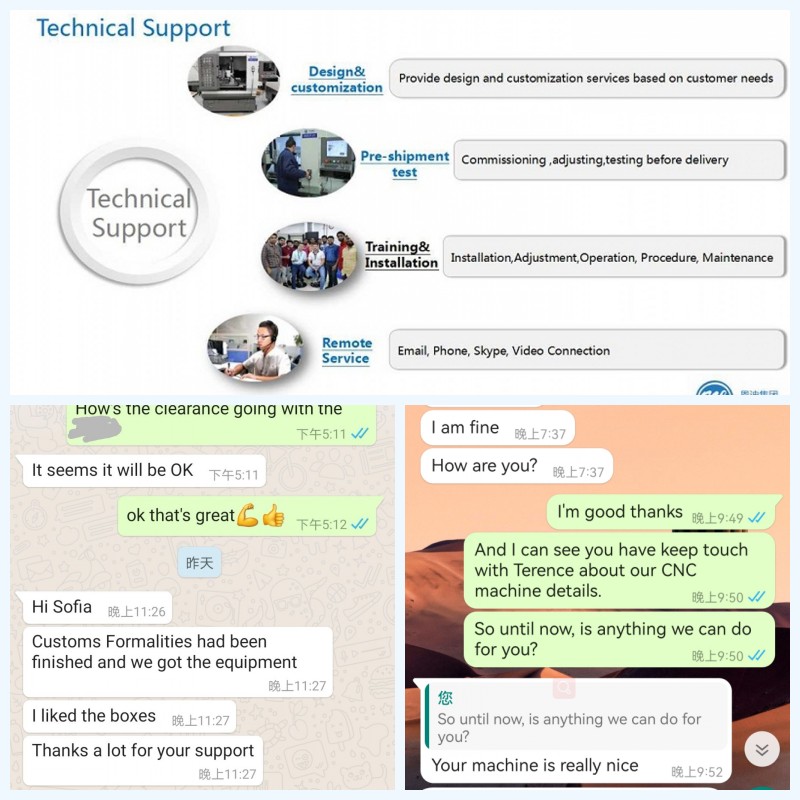

Customer Feedback:
Our Services
1.Renishaw laser interferometer for measuring machine accuracy.
2.Provide on-site technical consultation for customers on materials, cutting tools, proceses and supporting facilities.
3.ND remote training service: support 24 hours-7 days technical support by call or email.
4.All of engineers can speak English, will reply you within 2 hours(include holiday and weekend), basic problem will reply solution within 4-8 hours, complexity problem will reply solution within 12 hours.
Packaging & Shipping
Firstly, the cnc center is to be packed with plastic sheet for cleaning and damp proofing.
Secondly, the cnc machine is to be put in the plywood case for safety and clashing.
Thirdly, the plywood case is transported into the container.
Company Information
ND group, started from Feb. 2013, headquarter locates in Shanghai, China. Key business covers Non-destructive Testing (NDT), Numeric Control, Precision Machinery, Granite Machinery, Automation and Software Development etc. overall solution in industry.
Subsidiaries include ND Inspection(Shanghai, Hongkong), ND Inrelligence(Jinan), ND Precision(Jinan, Shenzhen), ND Seiko(Shizuoka,Japan).
FAQ
FAQ:
1.Q: What kind of material does your machine can process?
A: Copper, Brass, Magnesium, etc.
2.Q: Which industry is your machine suitable for?
A: Printing industry and packaging industry.
