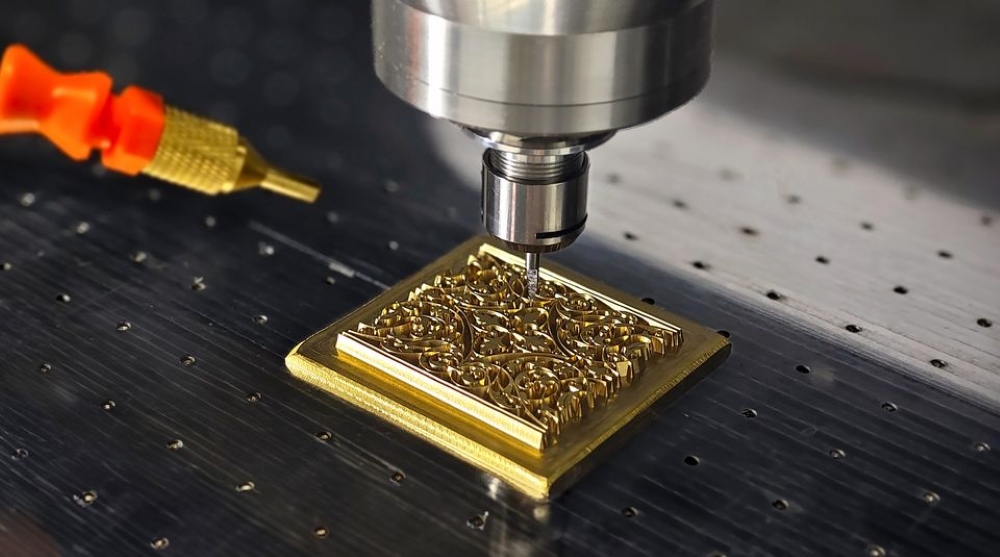

ND6050F CNC Machine specialized in manufacturing hot stamping dies made of brass, copper,magnesium, zinc,aluminum,steel etc.

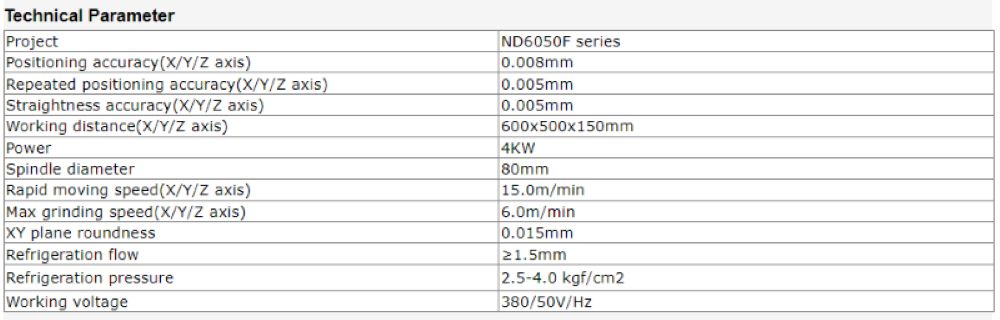

TECHNICAL PARAMETER

APPLICATIONS

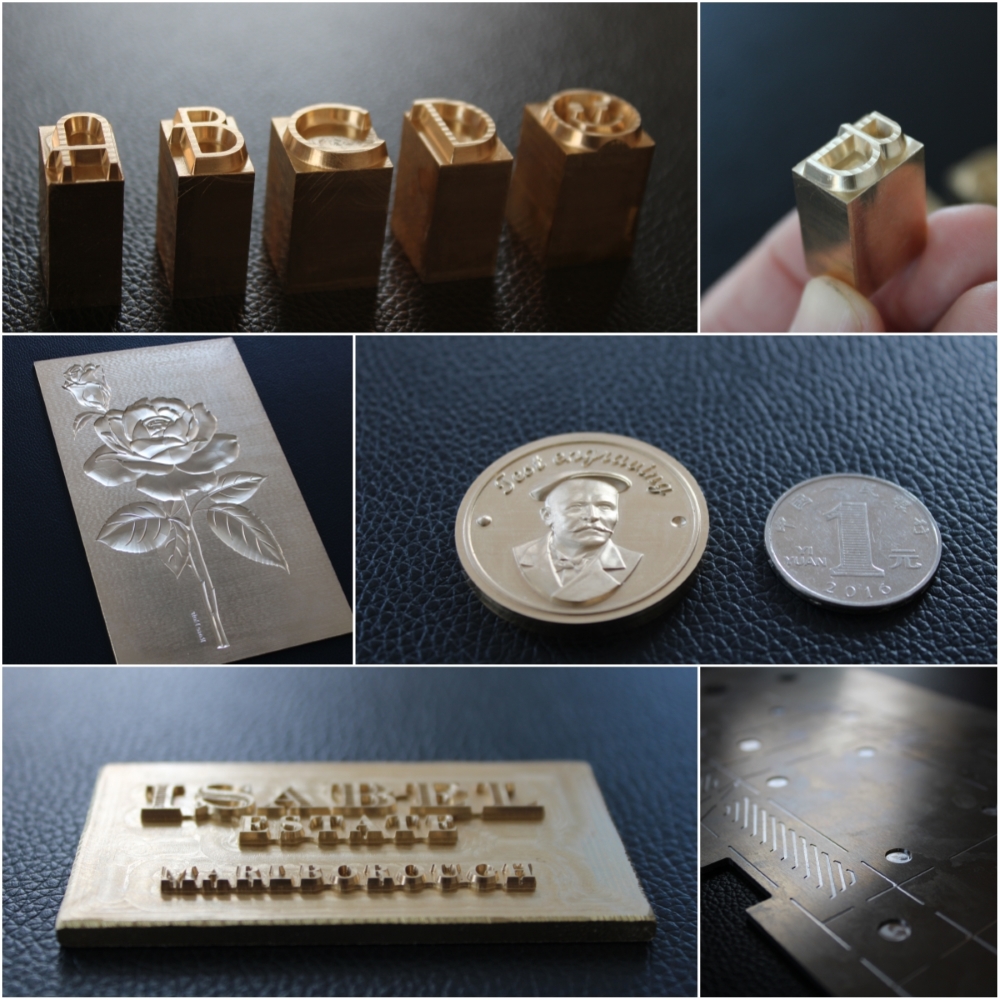

Our machines specialize in processing embossing · debossing · hot stamping dies · Cliches · flat foil dies · letterpress · lenticular foil ·multi level emboss dies · braille force · steel counter plate dies · crease plate made of brass,magnesium,aluminum,zinc,steel etc.

Products are widely used in printing and packaging industry.

DESIGN CONCEPT

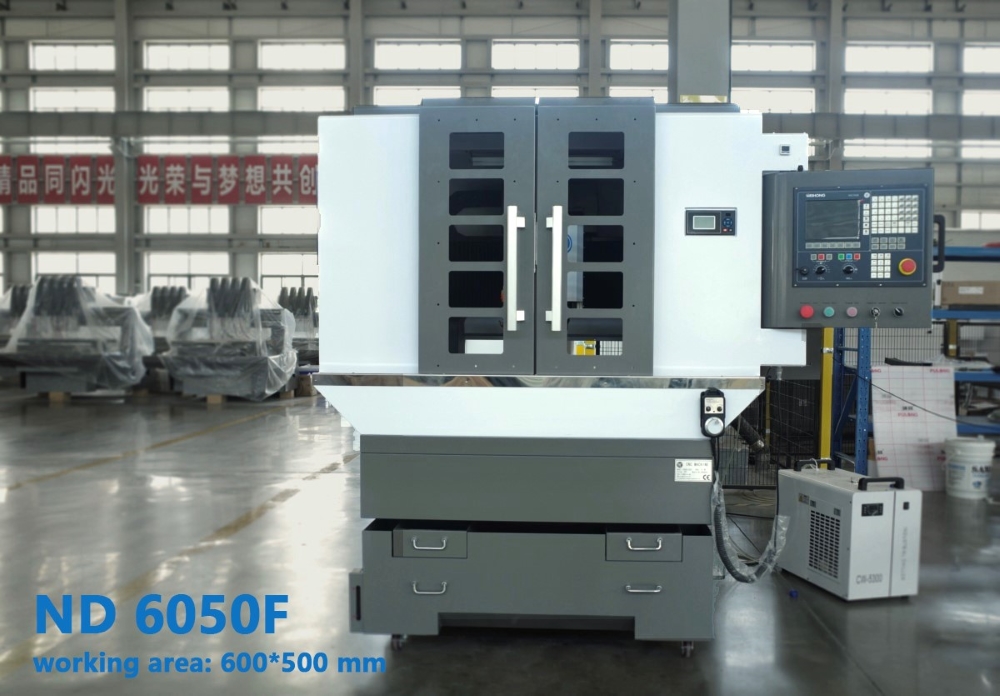

The design concept of ND6050 CNC milling and engraving machine is based on granite bed, beam and guide rail base.

The whole machine comply EU certification,working area is 600*500 mm.

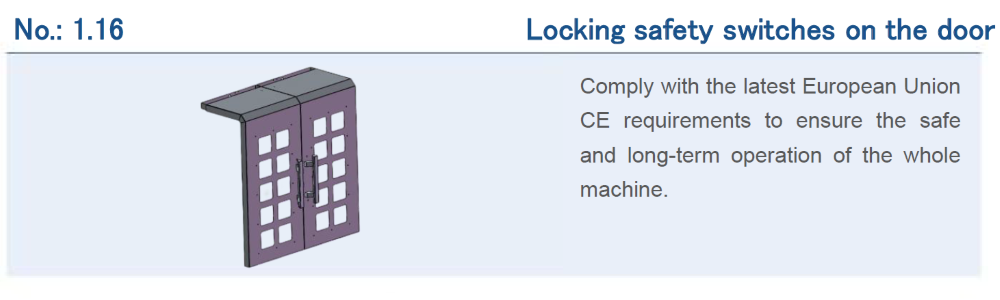

1. Full Cover for Safety & Non-pollution

(IP 56 for machine all inner covers.) The full cover will avoid crumbs flying out during processing,and ensure operator’s safety.

The front door of machine is larger than the table,to facilitate the placement of metal plates.

There is an opening designed in the front upper part of the door,to facilitate the transportation of plates into the machine using an overhead crane.

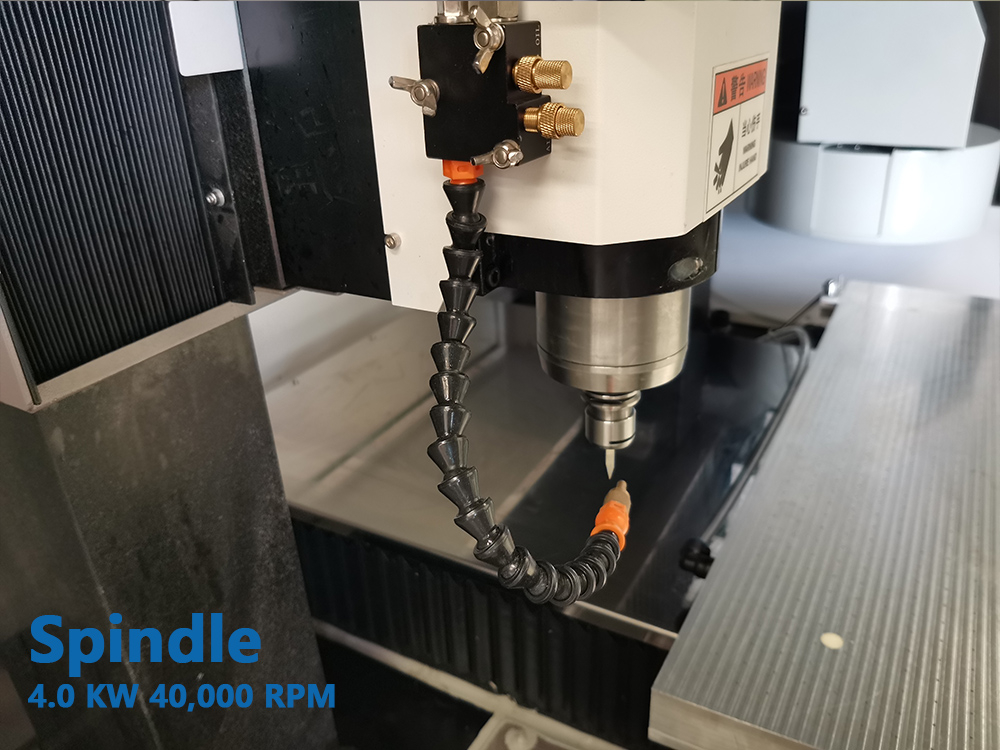

2. High Speed Spindle

4km,40,000 rpm spindle,with good stability and high efficiency.

3. High Precision

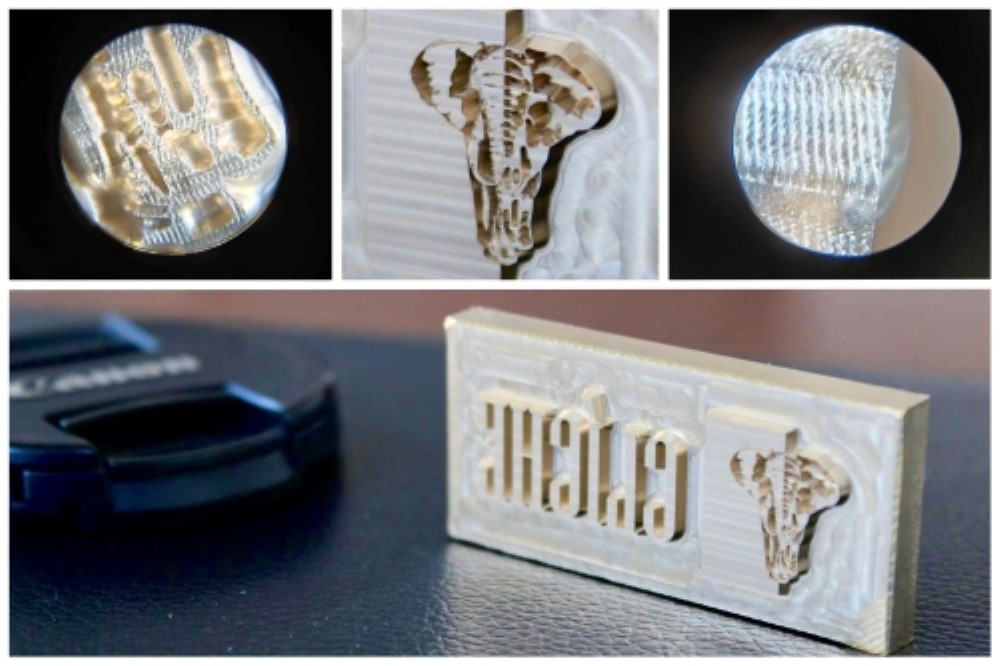

ND CNC machine precision up to 0.005 mm, a sample brass die magnified 40 times as smooth line without burrs as follows

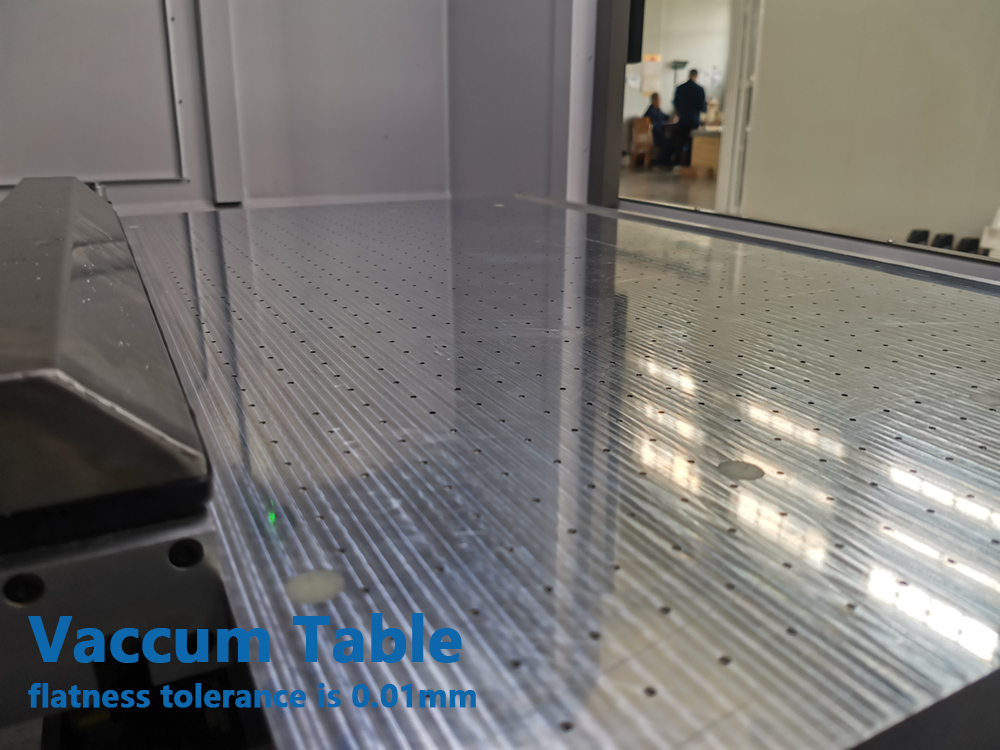

4. Vacuum Table

The machine equipped with vacuum table,which can easy to adsorb plates firmly,ensure not move during processing.

The material of vacuum table is aluminum,the thickness is 25mm,hole diameter is 1.5mm,hole spacing is 20mm,the flatness tolerance is 0.01mm.
