Stamping Tool Cliche for Hot Foil Stamping and Embossing CNC machine

Date:2024/08/12

Stamping Tool Cliche for Hot Foil Stamping and Embossing CNC machine


Product Description

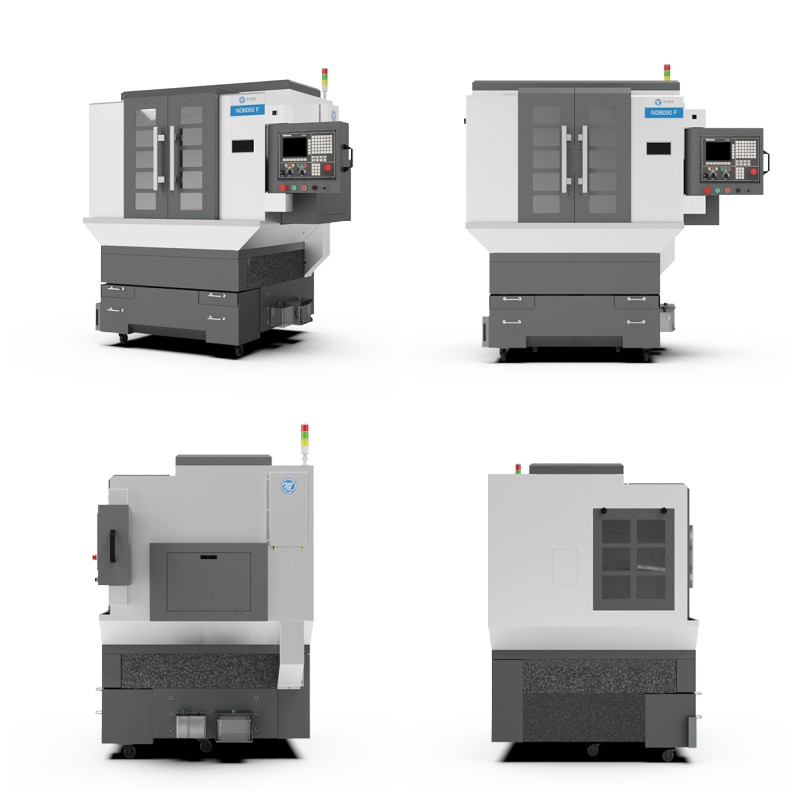

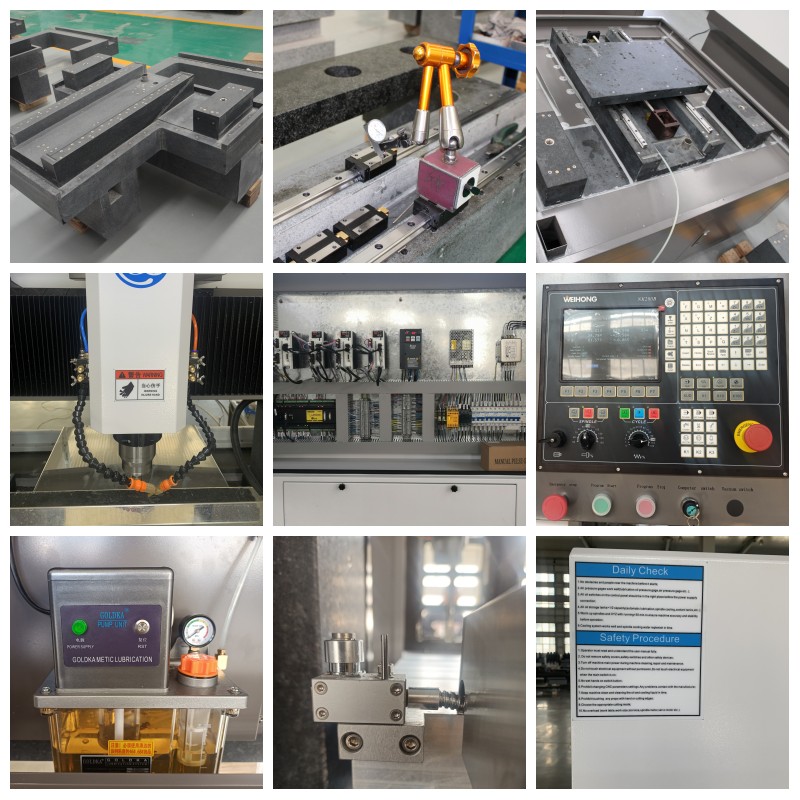

ND6050 Series metal CNC machine includes full cover, CCD camera, probe, linear gauge, vacuum table, multi tool changer magazine and so on. The design concept of ND6090 Series metal CNC machine is based on granite bed, beam and guide rail base. It is equipped with high-precision screw guide and high-power/RPM spindle. The whole system is controlled by servo and glass processing of multiple processes through programming completely.



Application Cases

Typical applications include metal(brass&copper, magnesium, aluminum, steel) process. Such as foil stamping dies, embossing dies, metal mould and so on.

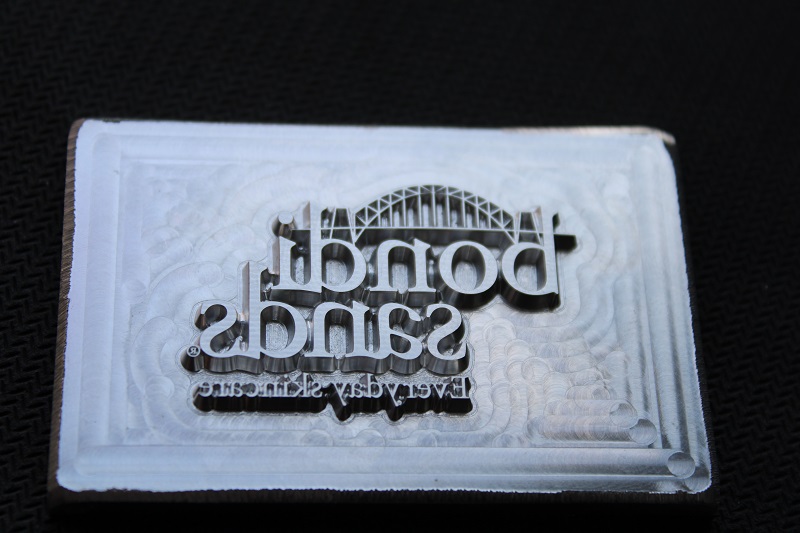

Brass&Copper dies

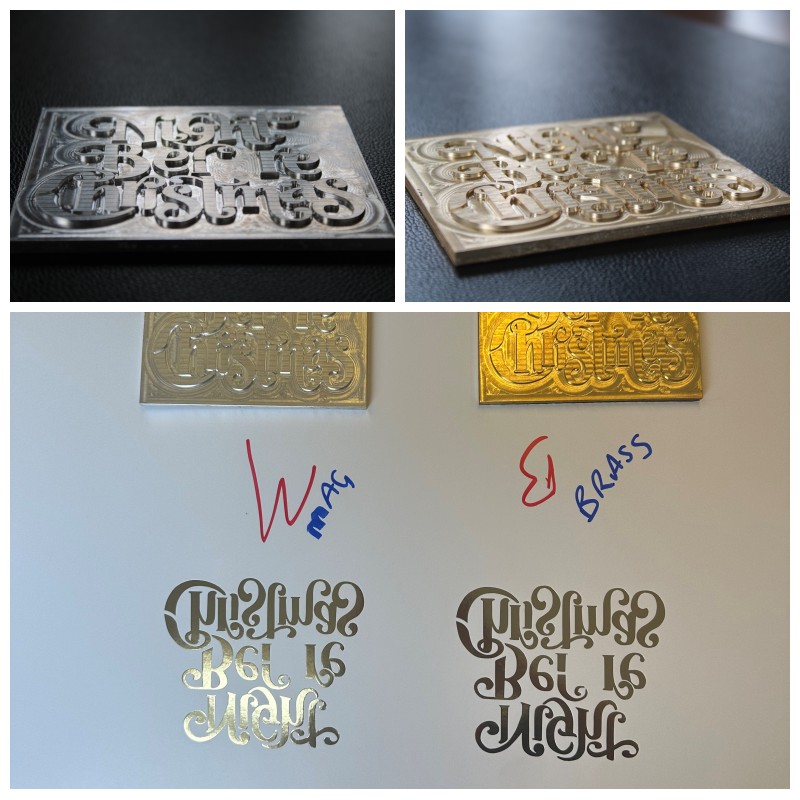

Magnesium dies

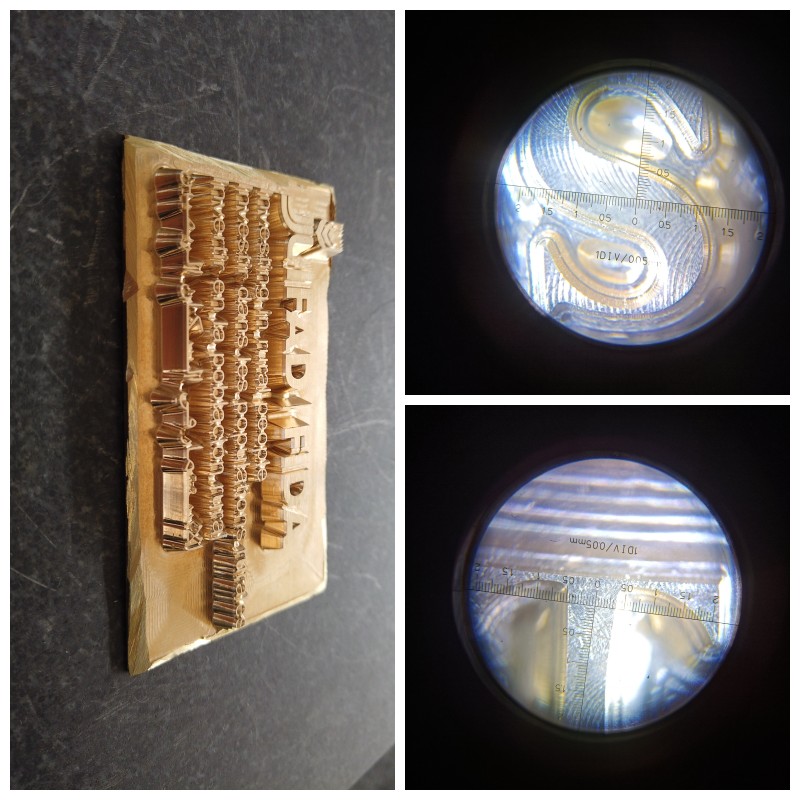

Brass/Magnesium dies and hot stamping effect


40x magnification


TECHNICAL PARAMETERS

Item

Project

Technical Parameters

Machine accuracy

Positioning accuracy (X/Y/Z axis)

0.008mm

Repeated positioning accuracy (X/Y/Z axis)

0.005mm

Straightness accuracy (X/Y/Z axis)

0.005mm

Machine dimension

Spindle spacing

/

Working distance (X/Y/Z axis)

600*500*150mm

Working table (X/Y axis)

600*500mm

Spindle

Max. RPM

40000/60000rpm

Power

4.0/1,8kw

Spindle diameter

62mm

Clamping mode

T11-ER11

Feed

Rapid moving speed (X/Y/Z axis)

15m/min

Max.grinding speed (X/Y/Z axis)

6m/min

Machining accuracy

Square dimension accuracy

0.01mm

XY plane roundness

0.015mm

Spindle cooling system

Refrigeration flow

≥1.0mm

Refrigeration pressure

2.0-4.0kgf/cm2

Environmental requirement

Working voltage

320/50v/Hz

Compressed gas presuure

0.6Mpa

Vacuum pressure

-0.06Mpa

Option ATC Magazine

Linear type

Y

Carrousel type

Y

Option full cover

Full cover protection

Y

Option probe

Probe positioning

Y

Option linear gauge

Linear gauge

Y

Option CCD camera

CCD camera

Y

Machine total power

/

6kw

Machine full cover

Dimension

1850*1400*2050mm

Weight

1900kg

      *Machine can select spindle according to user's needs or match with other different functional modules to achieve the  user's personalized need.



Our Services

SERVICE PROCESS

A. ND remote training service: support 24 hours -7 days technical support by call or email

B. Support online text&video instruction via Skype, whatsapp, wechat, viber etc

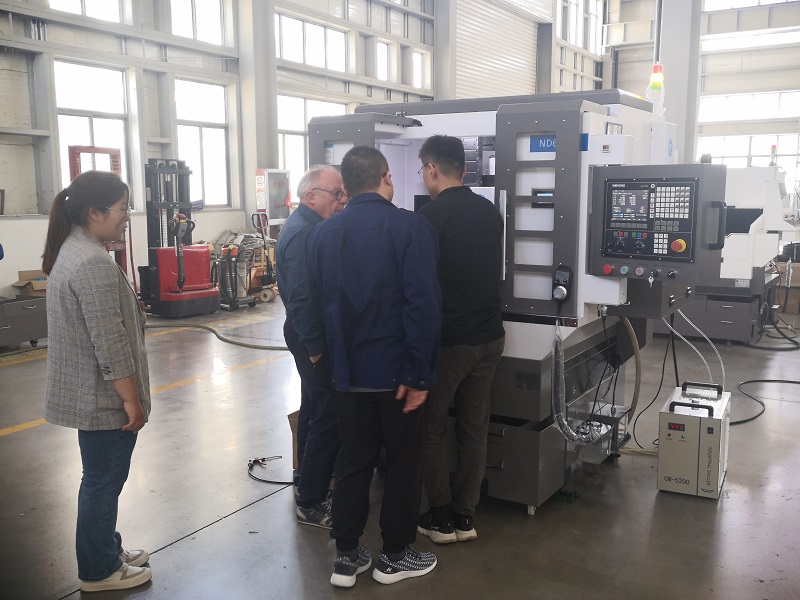

C. Welcome customer come to our factory for check and training before delivery.

D. All of engineers can speak English, then can go to your factory for installation, training and maintain.



GUARANTEE

A. 13 months guarantee of the whole machine.

B. All parts shall be changed free of charge if there is any problem during the warranty period.

We will provide consumable parts and raw material at an agency price.

AFTER SALES SERVICE

A. Contact our after sales engineers by email / skype / whatsapp / wechat or mobile phone, service@nd-cnc.com

Provide your PI number and briefly describe the problem, it’s better to provide pictures or videos to explain.

B. All of engineers can speak English, will reply you within 2 hours(include public holiday and weekend), basic problem will reply solution within 4-8 hours, complexity problem will reply solution within 12 hours.

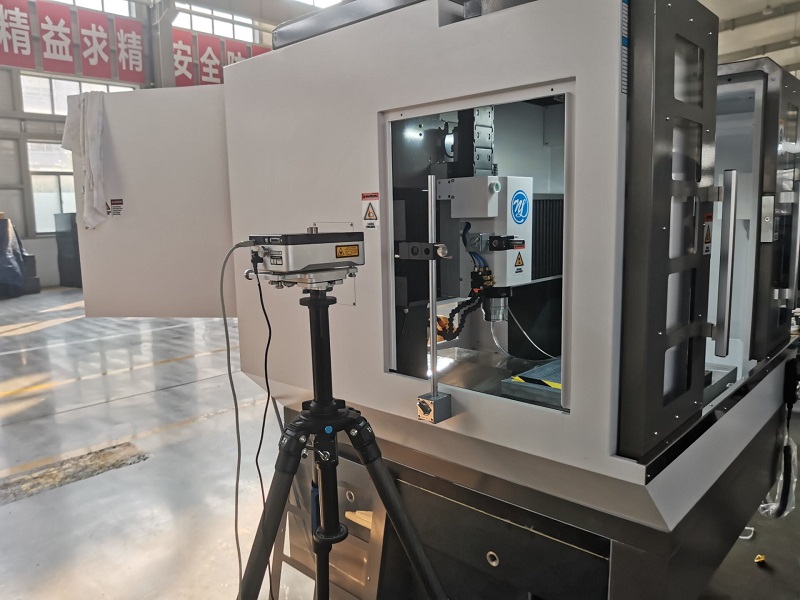

Rensishaw Laser Interferometer check the accuracy of XYZ axis and the whole machine.

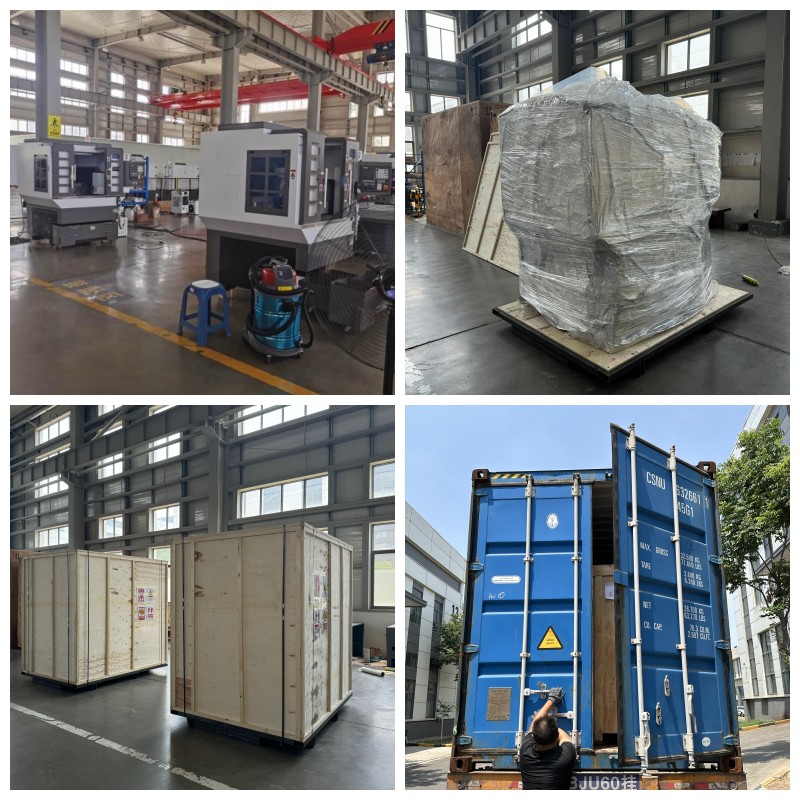

Packaging & Shipping
