Production Description

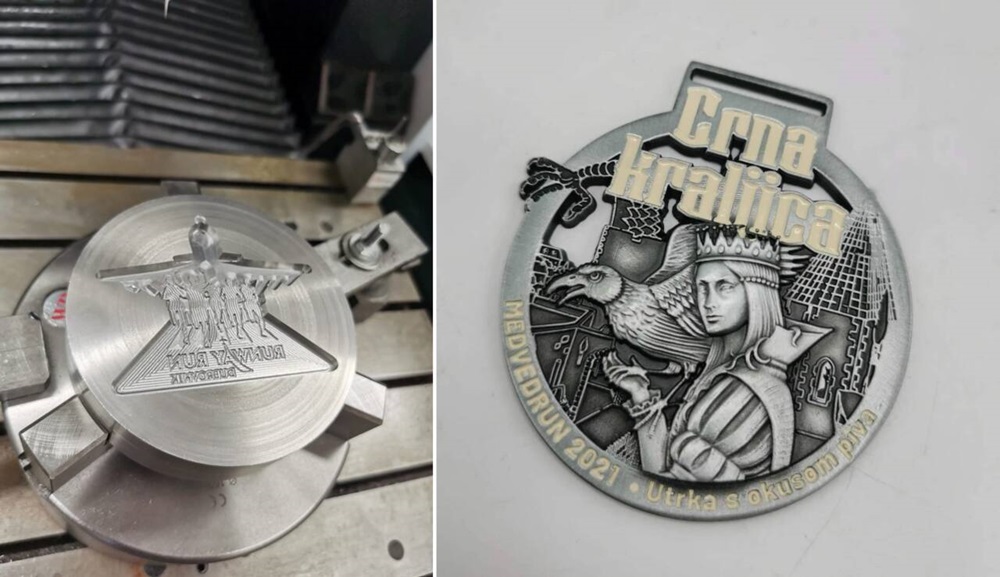

The typical applications of this machine include metal process, such as hot foil stamping dies, hot foil embossing dies, hot foiling debossing dies, brass hot foil stamping cliches, magnesium hot foil stamping cliches, 3D micro hot foil stamping dies and so on.

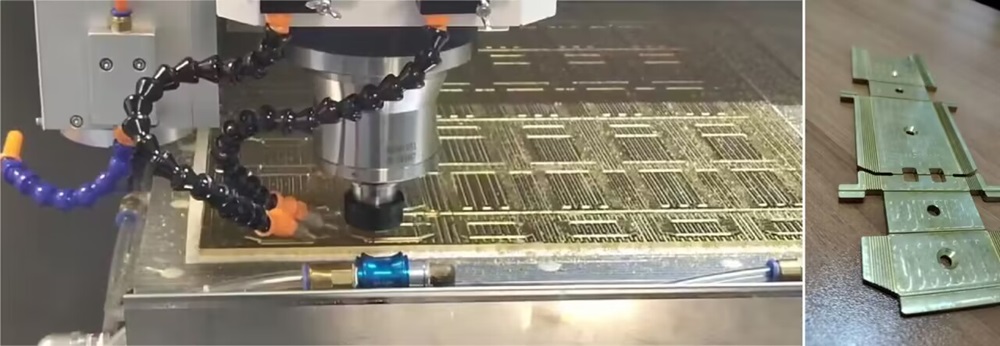

Steel counter plate
Steel stamp

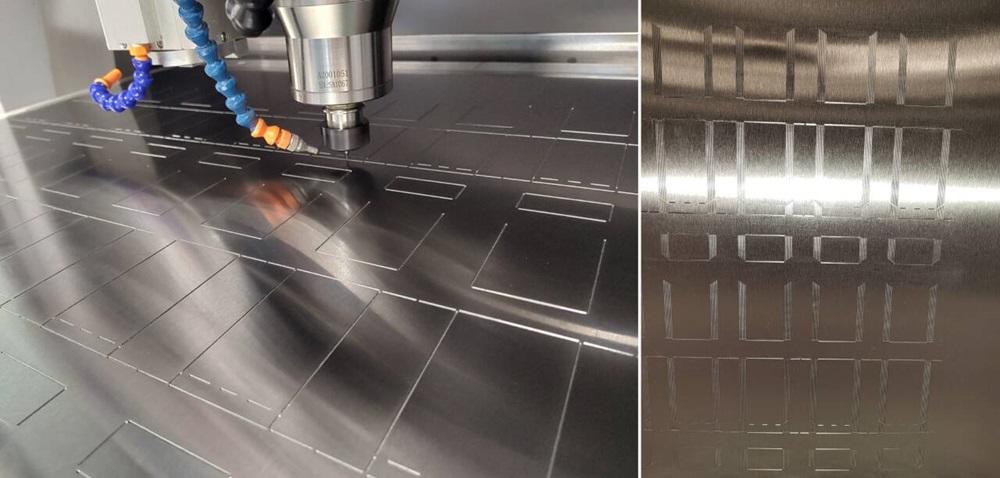

Creasing plate
Main machine accessories

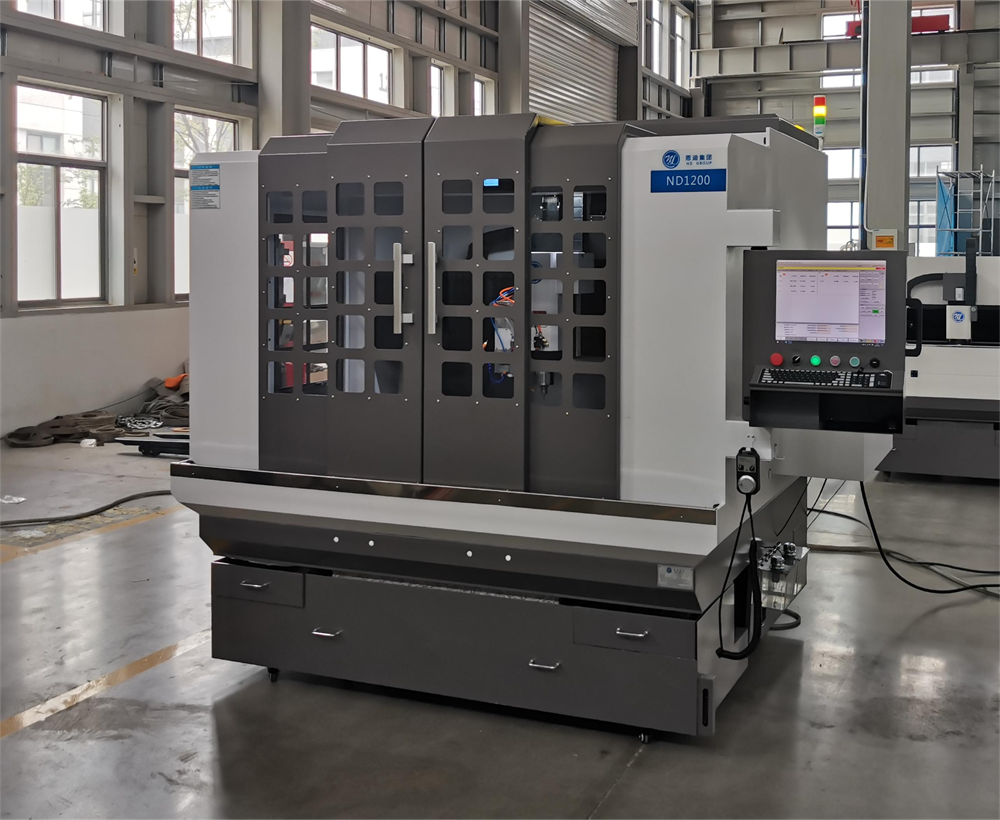

ND1200 metal CNC machine includes full half cover, vacuum table, multi tool changer magazine and so on. The design concept of ND1200 metal CNC machine is based on granite bed, beam and guide rail base. It is equipped with high-precision screw guide and high-power/RPM spindle. The whole system is controlled by servo and metal processing of multiple processes through programming completely.
Technical Parameter
Item | Project | Technical Parameters |
Machine accuracy | Positioning accuracy (X/Y/Z axis) | 0.008mm |
Repeated positioning accuracy (X/Y/Z axis) | 0.004mm | |
Straightness accuracy (X/Y/Z axis) | 0.004mm | |
Machine dimension | Working distance (X/Y/Z axis) | 1200*800*150mm |
Working table (X/Y axis) | 1200*800mm | |
Spindle | Max. RPM | 36000/60000/ |
Power | 6.0/2.5/1.2kw | |
Spindle diameter | 100/80/62mm | |
Clamping mode | ISO25-ER16/20/25/T11 | |
Feed | Rapid moving speed (X/Y/Z axis) | 15m/min |
Max.grinding speed (X/Y/Z axis) | 6m/min | |
Spindle cooling system | Refrigeration flow | ≥3.0mm |
Refrigeration pressure | 3.0-4.0kgf/cm2 | |
Environmental requirement | Working voltage | 320/50v/Hz |
Compressed gas presuure | 0.6Mpa | |
Vacuum pressure | -0.06Mpa | |
Option ATC Magazine | Linear type | Y |
Carrousel type | Y | |
Option full cover | Full cover protection | Y |
Option probe | Probe positioning | Y |
Option linear gauge | Linear gauge | Y |
Option CCD camera | CCD camera | Y |
Machine total power | / | 10kw |
Machine full cover | Dimension | 2790*2120*2250mm |
Weight | 4600kg |
Our Service
CNC Engineering Service
We can provide customers with one-to-one technical services from the aspects of engineering and technical support, personnel improvement training and equipment maintenance guarantee.
Guarantee
13 months guarantee of the whole machine. All parts shall be changed free of charge if there is any problem during the warranty period. We will provide consumable parts and raw material at an agency price.
After sales service
All of engineers can speak English,If you encounter any problems, you can contact us through social media,and will reply you within 2 hours.
Packaging & Shipping

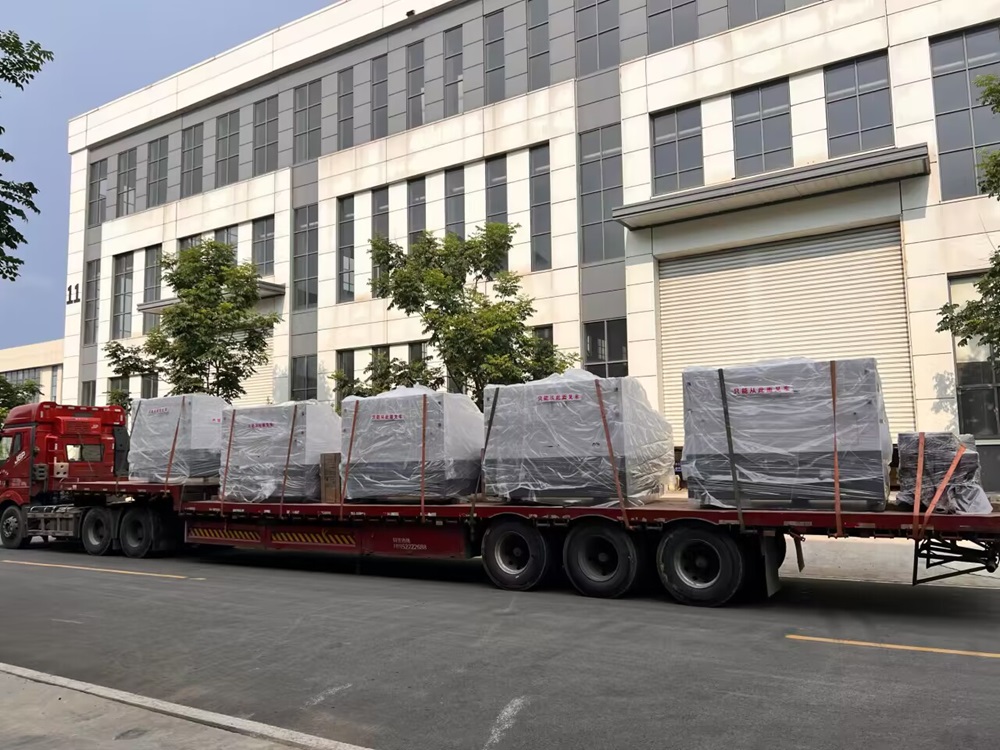

Firstly, the cnc center is to be packed with plastic sheet for cleaning and damp proofing.
Secondly, the cnc machine is to be put in the plywood case for safety and clashing.
Thirdly, the plywood case is transported into the container.
