At the beginning of the article, I should introduce the material—40Cr steel.

After the heat treatment, the 40Cr steel hardness can reach 45-50HRC.

We make the sample for our client who want to make embossing metal label sticker for wine, perfume and other luxury packaging.

Let us see the embossing dies.

Male embossing dies:

lSize: 50*50mm

lEngraving Depth: 0.5mm

lEngraving Time: about 1 hour

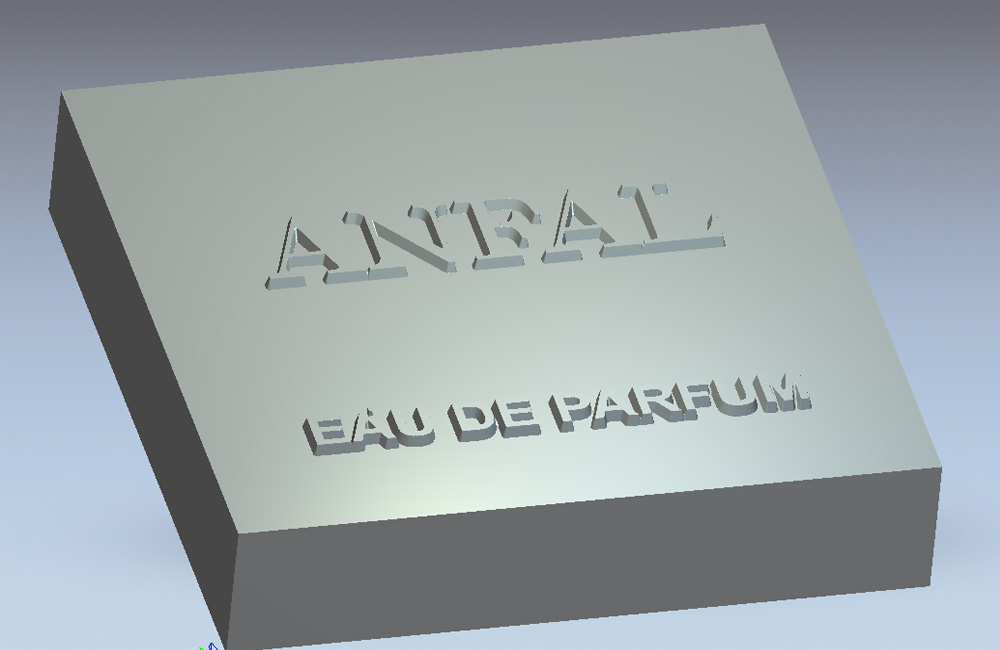

Simulation effects in ARTCAM:

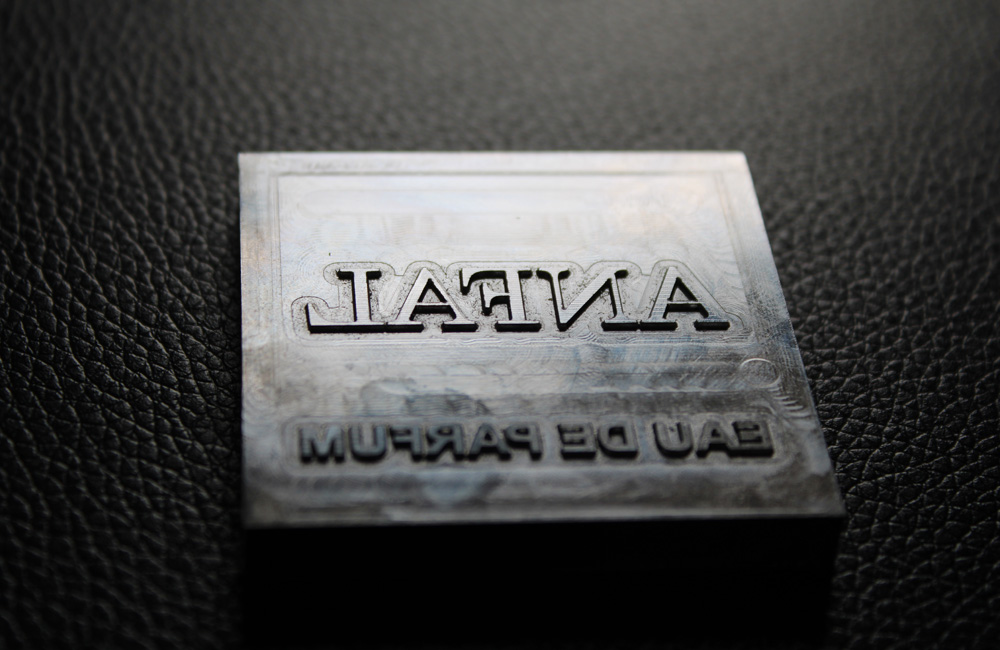

The finished male dies:

Female embossing dies:

lSize: 50*50mm

lEngraving Depth: 0.5mm

lEngraving Time: about 40 minutes

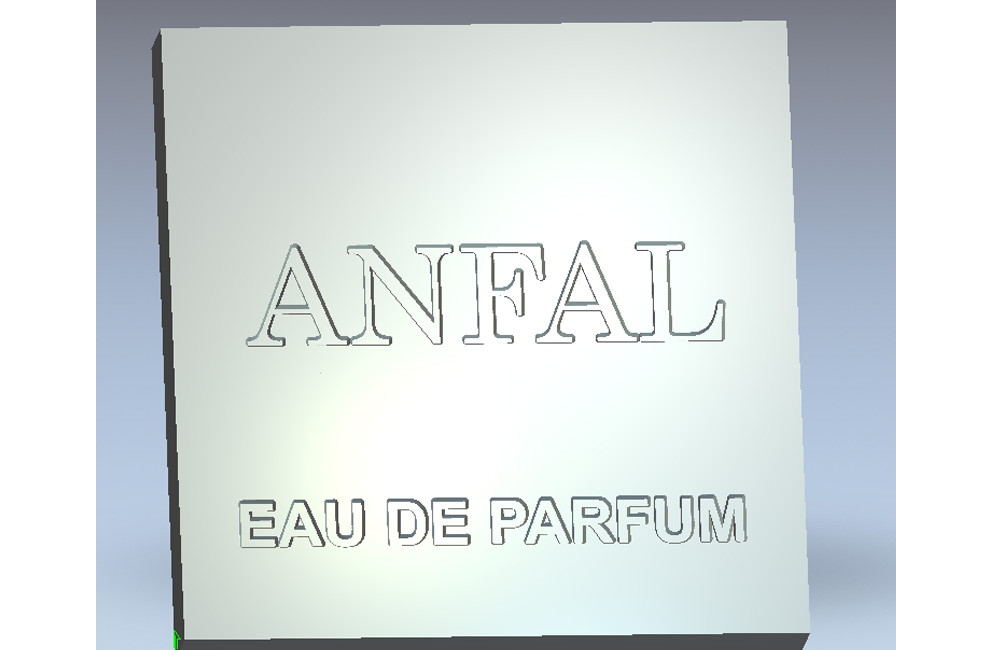

Simulation effects in ARTCAM:

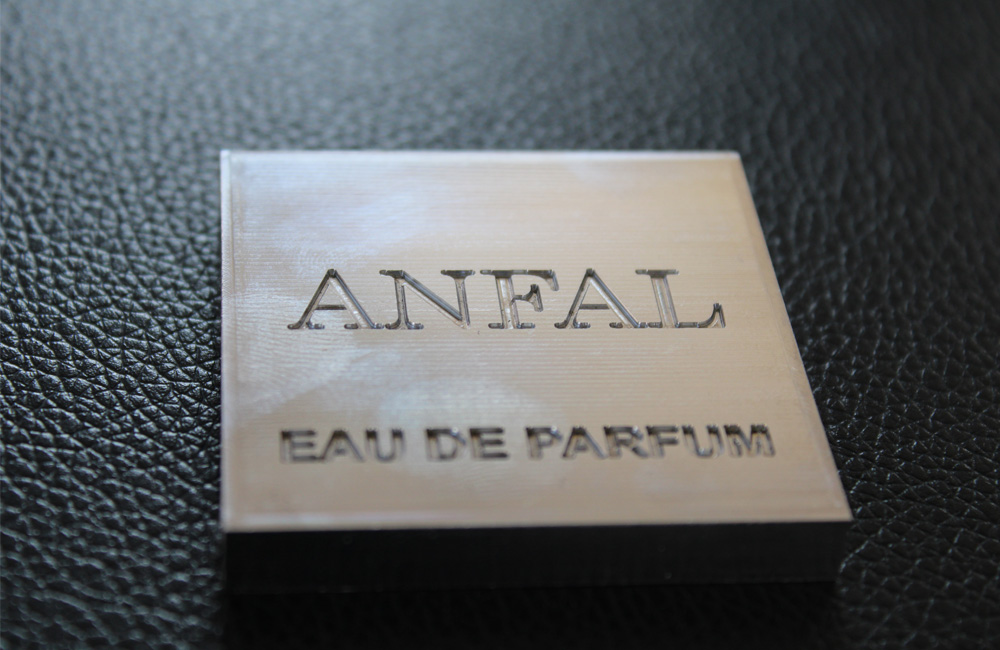

The finished female dies:

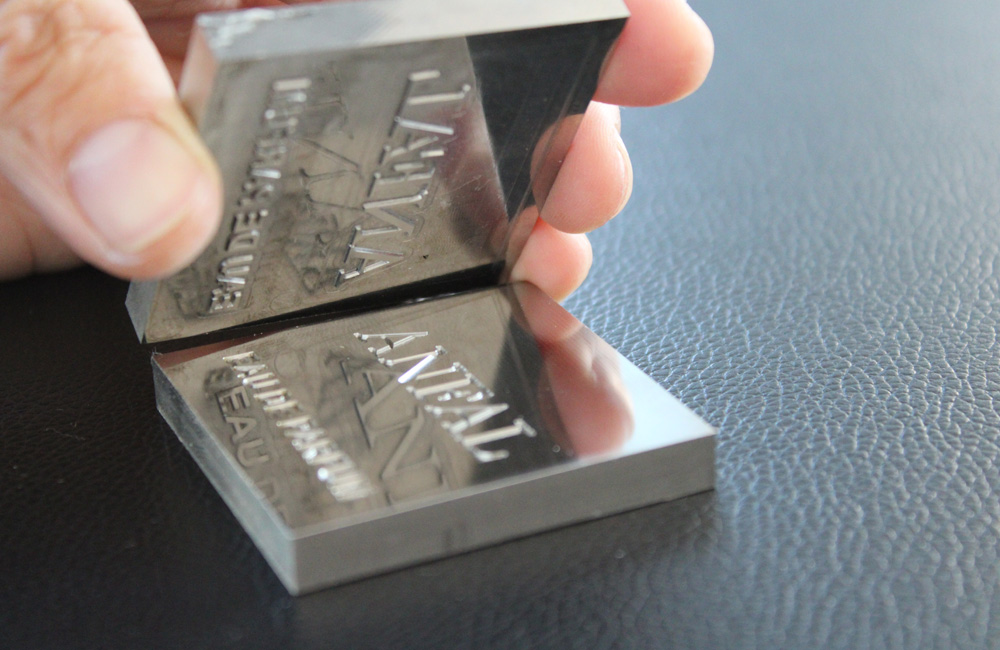

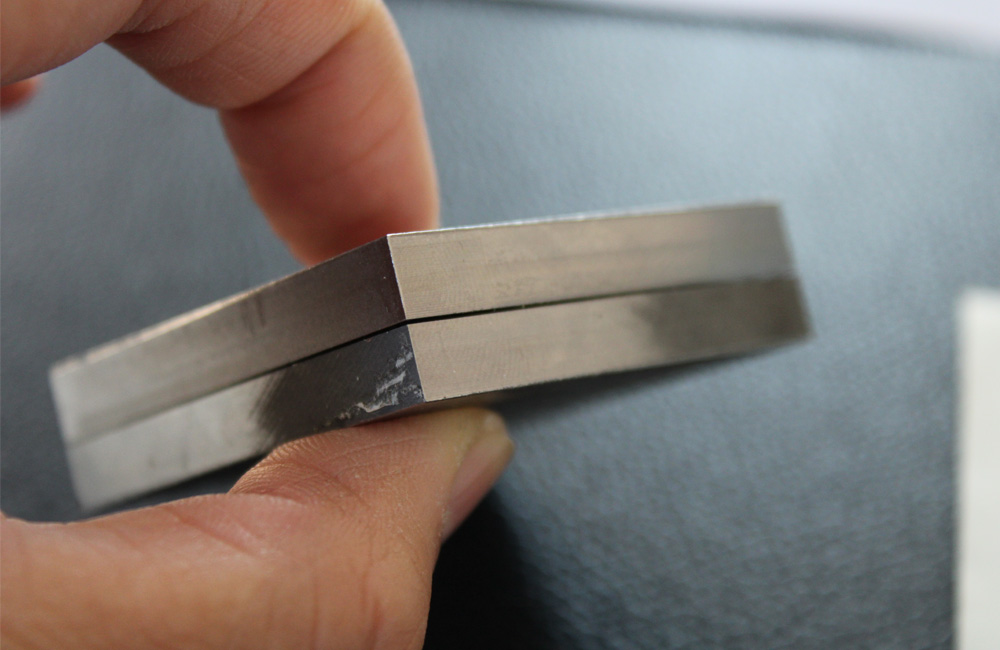

Of course, the female and male dies need to be used in conjunction. These two dies can be perfectly merged together.

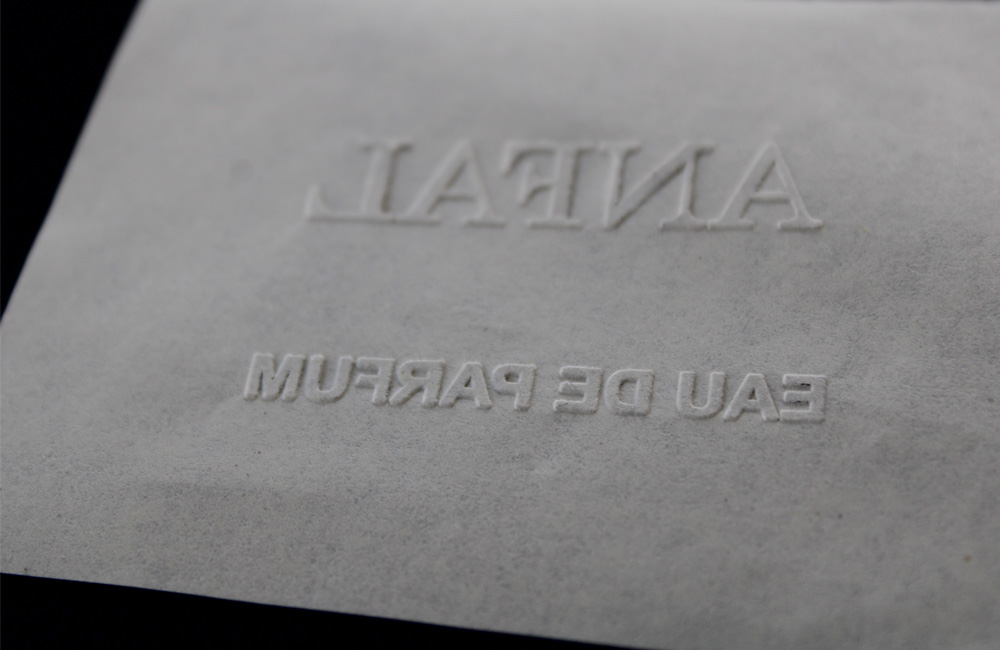

Manually use dies to imprint paper, the rendering is as follows:

So, if you also want to produce such molds yourself, why not try asking ND?

Waiting you at any time.
