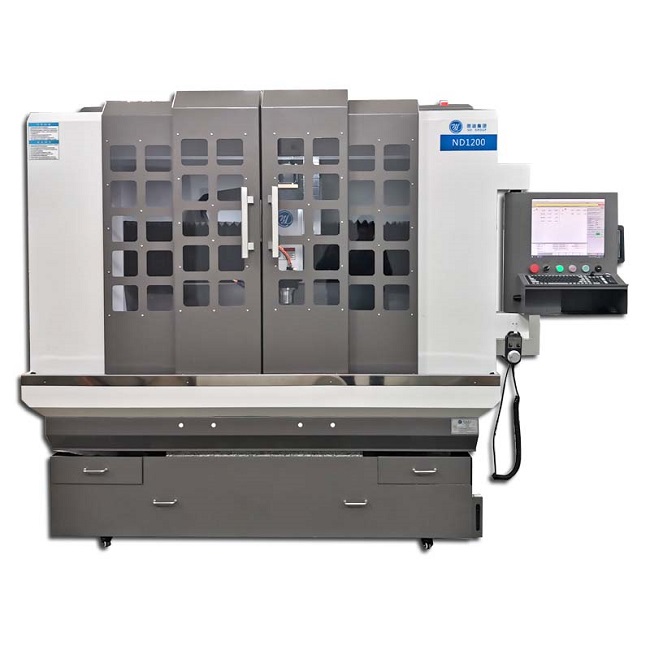

ND1200 series CNC machine
The main application direction of CNC equipment in the printing and hot stamping packaging industry is the processing of hot stamping plates.
The materials of hot stamping plate are copper/brass dies, zinc plate, magnesium dies and aluminum dies. The common processes in the market are embossing and foil stamping.
Project | ND1200 series |
Positioning accuracy(X/Y/Z axis) | 0.008mm |
Repeated positioning accuracy(X/Y/Z axis) | 0.005mm |
Straightness accuracy(X/Y/Z axis) | 0.005mm |
Working distance(X/Y/Z axis) | 1200x800x150mm |
Power | 6KW |
Spindle diameter | 100mm |
Rapid moving speed(X/Y/Z axis) | 15.0m/min |
Max grinding speed(X/Y/Z axis) | 6.0m/min |
Square dimension accuracy | 0.01mm |
XY plane roundness | 0.015mm |
Refrigeration flflow | ≥1.5mm |
Refrigeration pressure | 2.5-4.0 kgf/cm2 |
Working voltage | 380/50V/Hz |

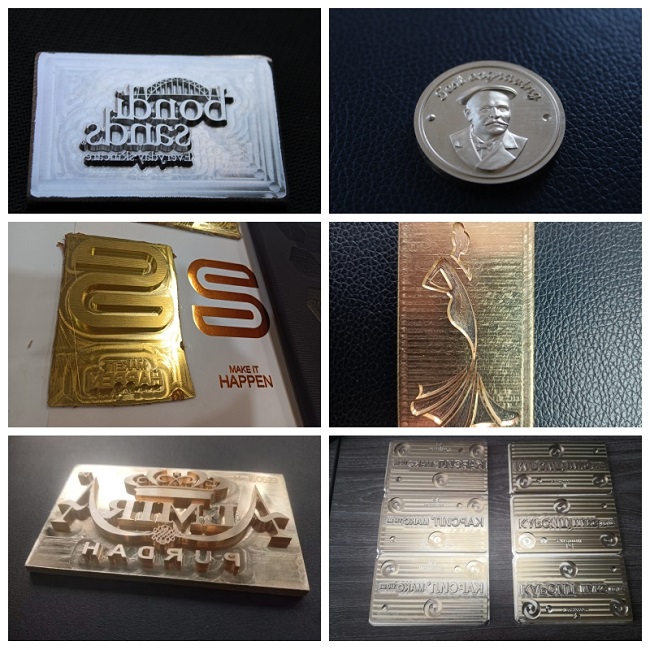

Finished Products
Product Description
Granite Based
High-precision machines guarantee high-precision products. The base and beam of the equipment are all made of Jinan Black Granite,and all their precision surfaces are manually grind.This allows the overall structure of the device to have high stability and accuracy.
Servo System
All axis systems of the equipment adopt Panasonic servo motor to ensure high precision in the driving process.
Spindle and Cutter
We have a variety of spindles for users to choose according to their needs.We provide customized design services for tools.
Option
According to different requirements and different applications, the most suitable machine configuration can be selected.
Tools changer system: We can choose the number and method of tool change.
16 disc tool change.
Table Type: Vacuum table/T-slot table.
CCD carema system

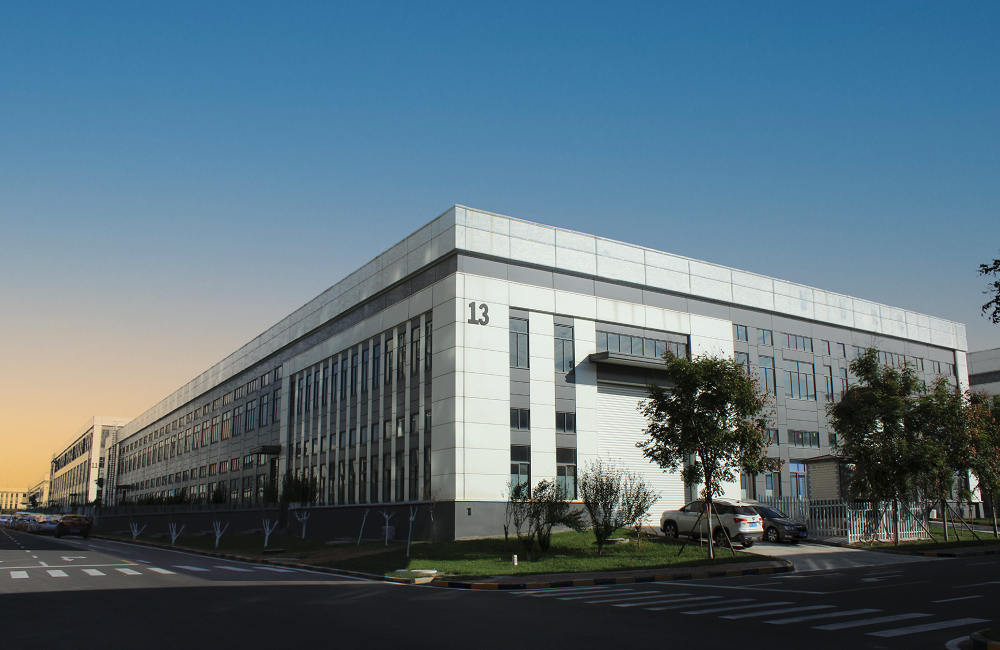

Company Information
ND GROUP,Started from Feb. 2013, headquarter locates in Shanghai, China. Key business covers Non-destructive Testing (NDT), Numeric Control, Precision Machinery,Granite Machinery, Automation and Software Development etc. overall solution in industry. Subsidiaries include ND Inspection (Shanghai, Hongkong), ND Intelligence (Jinan), ND Precision(Jinan, Shenzhen), NDSeiko(Shizuoka, Japan).
The certificates and patents are the performance of the company ability.
We have 2 R&D teams and 3 engineering teams, professional on machine design and manufacturer.
Up to now,we have passed all of these certificates such as ISO and CE ,TUV these quality certificates.
Customer Reference
So far, we have established cooperative relations with customers in more than 60 countries.
Our Services
Service Process
A. ND remote training service: support 24 hours -7 days technical support by call or email
B. Support online text&video instruction via Skype, whatsapp, wechat, viber etc
Guarantee
13 months guarantee of the whole machine.
All parts shall be changed free of charge if there is any problem during the warranty period.
We will provide consumable parts and raw material at an agency price.
After sales service
Contact our after sales engineers by email / skype / whatsapp / wechat or mobile phone.
Provide your PI number and briefly describe the problem, it’s better to provide pictures or videos to explain.
All of engineers can speak English, will reply you within 2 hours(include public holiday and weekend), basic problem will reply solution within 4-8 hours, complexity problem will reply solution within 12 hours.
