ND6090 series hot foil stamping embossing dies making CNC machine
Product Description

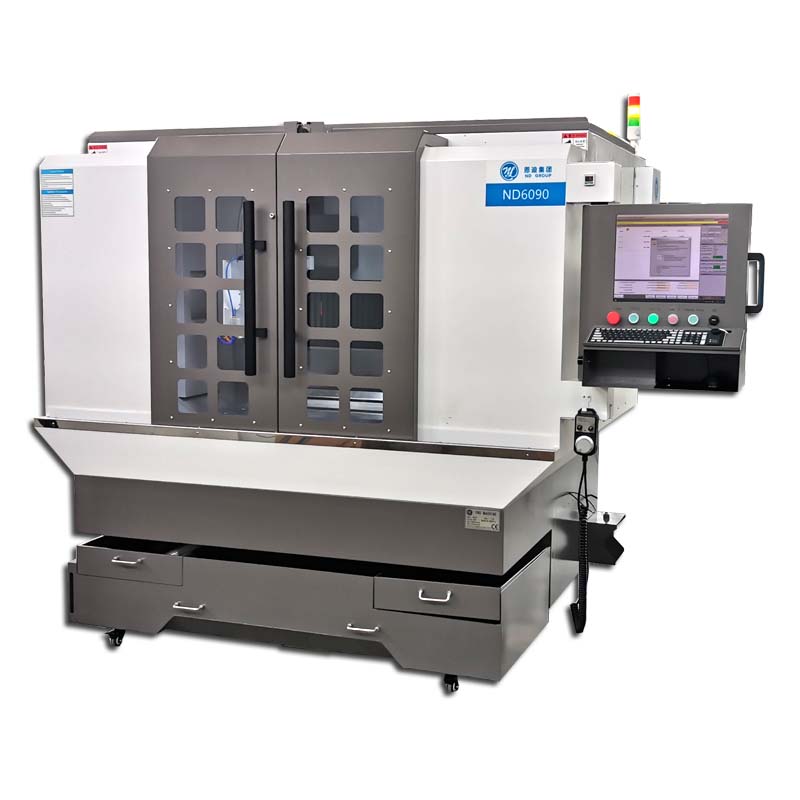

The design concept of ND6090 series metal CNC machine is based on natural granite bed and cross beam. It is equipped Taiwan/Korea C3 level ball screw, P level guide rails, Japan Panasonic servo system, 4kw 40000rpm high speed spindle.
ND6090 CNC machine have a wide range of performance characteristics, suitable for advertising, printing, packaging, dies/mold and other industries. The main processing materials are metals, such as brass/copper, aluminum, zinc, magnesium, stainless steel and carbon steel.
PRODUCT PARAMETERS
Item | Project | Technical Parameters |
Machine accuracy | Positioning accuracy (X/Y/Z axis) | 0.008mm |
Repeated positioning accuracy (X/Y/Z axis) | 0.005mm | |
Straightness accuracy (X/Y/Z axis) | 0.005mm | |
Machine dimension | Working distance (X/Y/Z axis) | 900*600*165mm |
Working table (X/Y axis) | 900*600mm | |
Spindle | Max. RPM | 40000rpm |
Power | 4.0kw | |
Spindle diameter | 80mm | |
Clamping mode | ISO20-ER16/20 | |
Feed | Rapid moving speed (X/Y/Z axis) | 15m/min |
Max.grinding speed (X/Y/Z axis) | 6m/min | |
Machining accuracy | Square dimension accuracy | 0.01mm |
XY plane roundness | 0.015mm | |
Spindle cooling system | Refrigeration flow | ≥1.5mm |
Refrigeration pressure | 2.5-4.0kgf/cm2 | |
Environmental requirement | Working voltage | 320/50v/Hz |
Compressed gas presuure | 0.6Mpa | |
Vacuum pressure | -0.06Mpa | |
Option ATC Magazine | Linear type | Y |
Carrousel type | Y | |
Option full cover | Full cover protection | Y |
Option probe | Probe positioning | Y |
Option linear gauge | Linear gauge | Y |
Option CCD camera | CCD camera | Y |
Machine total power | / | 6kw |
Machine full cover | Dimension | 2570*1680*2150mm |
Weight | 2950kg |
Our Services
CNC Engineering Services
It can provide customers with one-to-one technical services from the aspects of engineering and technical support, personnel improvement training and equipment maintenance guarantee.
Guarantee
A. 13 months guarantee of the whole machine.
B. All parts shall be changed free of charge if there is any problem during the warranty period.
We will provide consumable parts and raw material at an agency price.
After sales service
Contact our after sales engineers by email / skype / whatsapp / wechat or mobile phone, service@nd-cnc.com
Provide your PI number and briefly describe the problem, it’s better to provide pictures or videos to explain.
All of engineers can speak English, will reply you within 2 hours(include public holiday and weekend), basic problem will reply solution within 4-8 hours, complexity problem will reply solution within 12 hours.
Packaging and transportation details

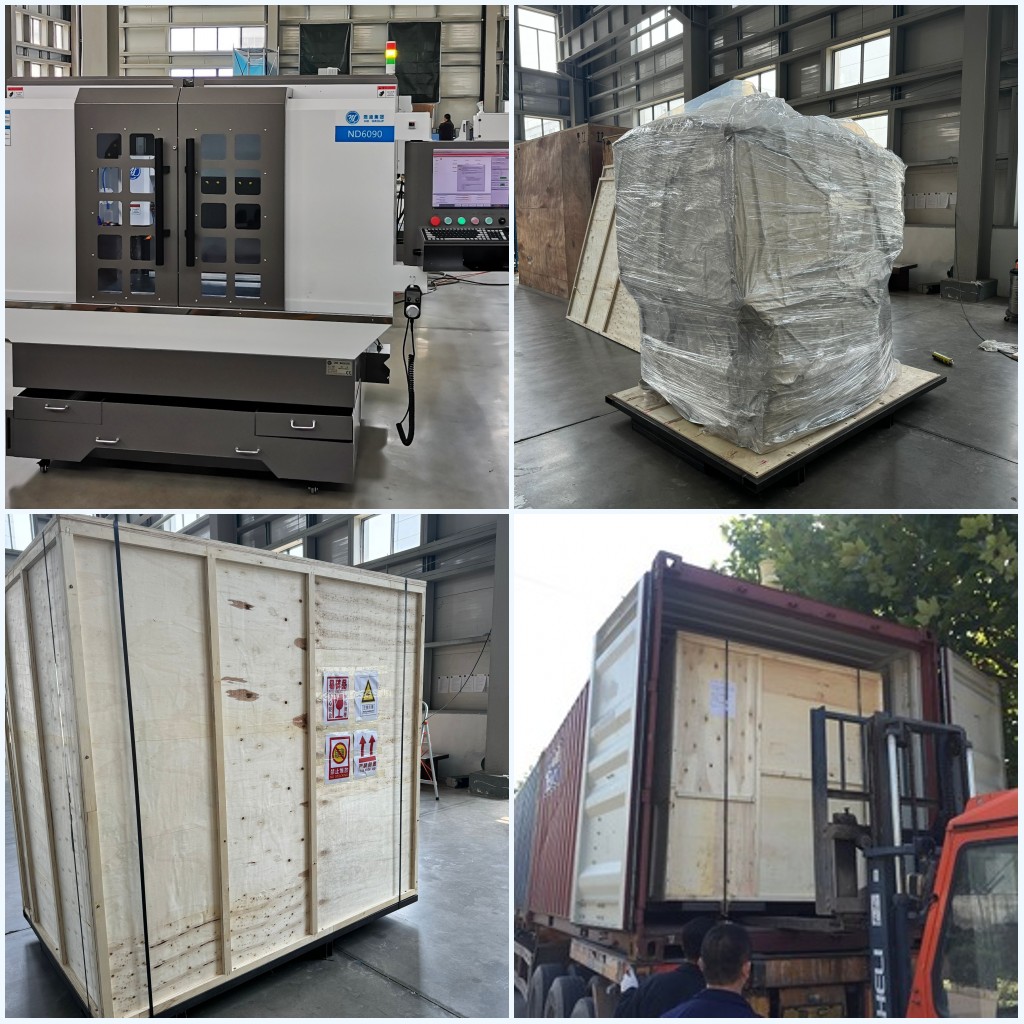

Put the machine into an aluminum foil vacuum bag, then wrap it with plastic film, pack it in a wooden box to prevent moisture, and finally pack it into a container.
Because the machine is heavy, use steel pallet, convenient for customers to use forklift to unload.
Customer feedback
Many customers are satisfied with our products, and the support of customers makes us the motivation for progress.
Company Information
ND group, started from Feb. 2013, headquarter locates in Shanghai, China. Key business covers Non-destructive Testing (NDT), Numeric Control, Precision Machinery, Granite Machinery, Automation and Software Development etc. overall solution in industry.
Subsidiaries include ND Inspection(Shanghai, Hongkong), ND Inrelligence(Jinan), ND Precision(Jinan, Shenzhen), ND Seiko(Shizuoka,Japan).
FAQ
1.Q: What kind of material does your machine can process?
A: Copper, Brass, Magnesium, etc.
2.Q:Do you support proofing service?
A:Yes, our support proofing service.We will provide dies testing services for customers.
