Production Description
The typical applications of this machine include metal process, such as foil stamping dies embossing dies, hot foiling dies. Such as brass hot foil stamping blocks, magnesium hot foil stamping cliches, aluminium hot foil stamping dies, Brass letterpress molds...

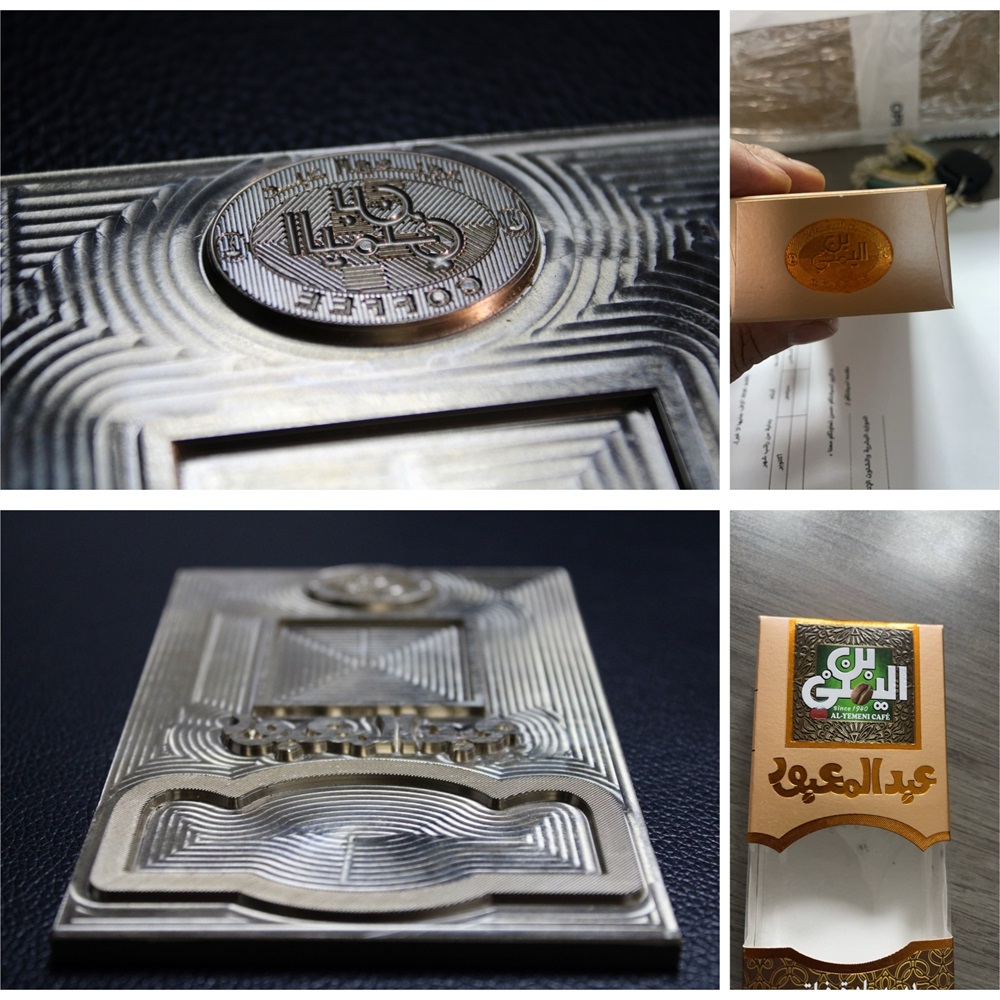

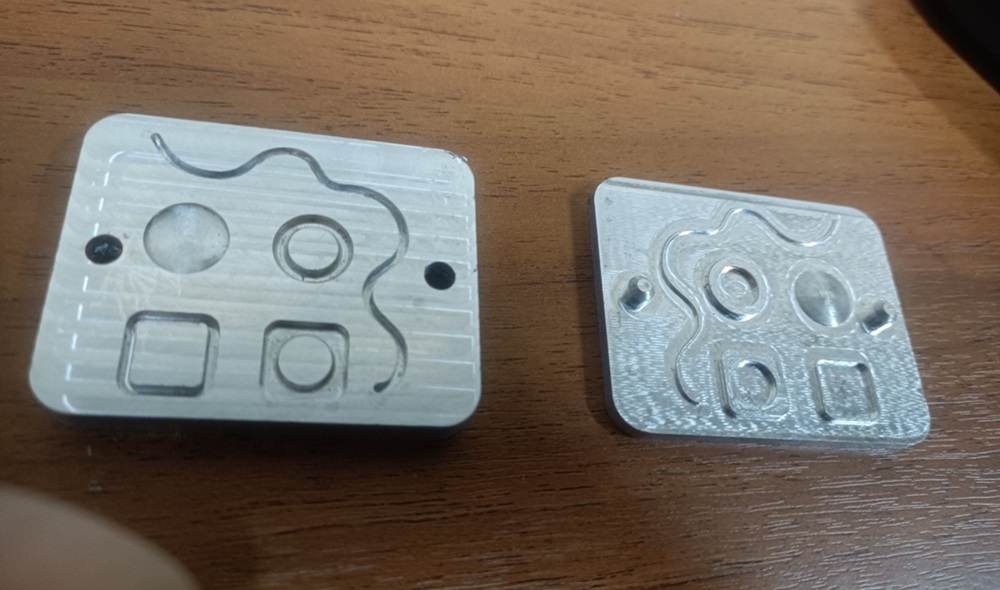

Brass dies & Hot stamping effect
Magenesium counter embossing dies

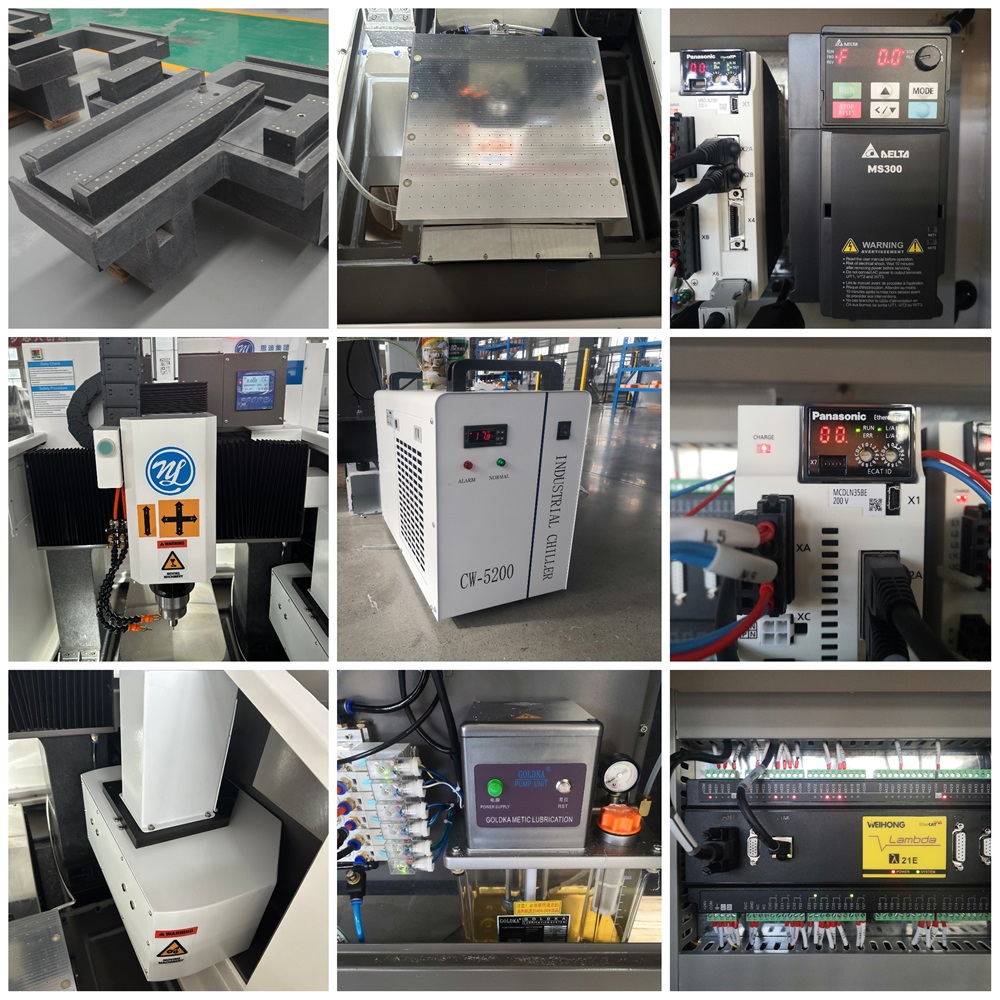

Main machine accessories

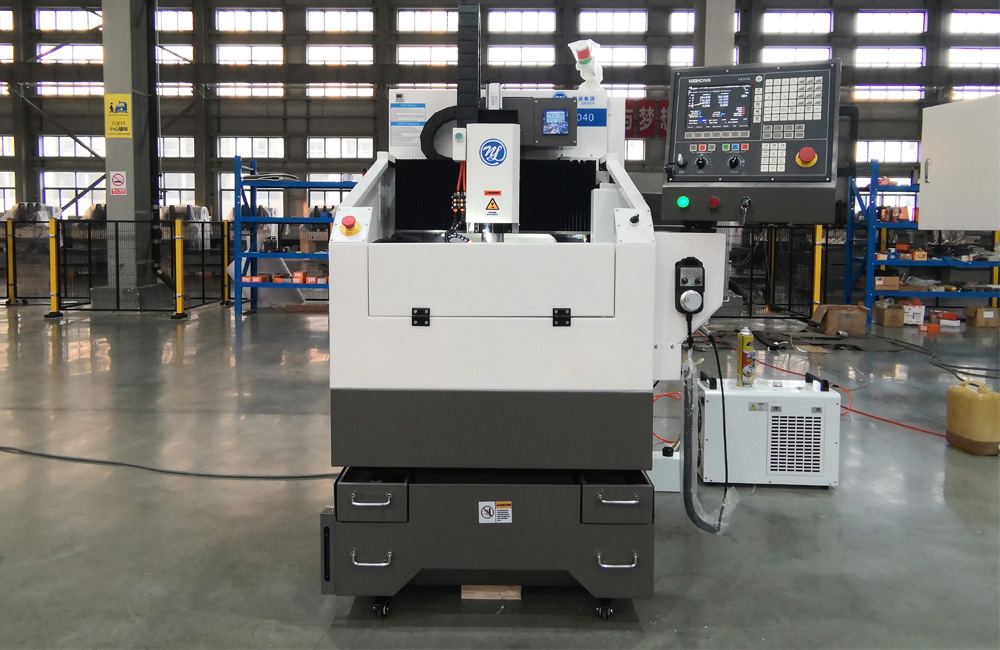

ND4040 metal CNC machine includes half cover, vacuum table, 12 tools changer magazine and so on. The design concept of ND4040 metal CNC machine is based on granite bed, beam and guide rail base. It is equipped with high-precision screw guide and high-power/RPM spindle. The whole system is controlled by servo and metal processing of multiple processes through programming completely.
Technical Paramete
Item | Project | Technical Parameters |
Machine accuracy | Positioning accuracy (X/Y/Z axis) | 0.008mm |
Repeated positioning accuracy (X/Y/Z axis) | 0.005mm | |
Straightness accuracy (X/Y/Z axis) | 0.005mm | |
Machine dimension | Working distance (X/Y/Z axis) | 400*400*150mm |
Working table (X/Y axis) | 400*400mm | |
Spindle | Max. RPM | 40000/60000rpm |
Power | 4.0kw | |
Spindle diameter | 62mm | |
Clamping mode | T11-ER11 | |
Feed | Rapid moving speed (X/Y/Z axis) | 15m/min |
Max.grinding speed (X/Y/Z axis) | 6m/min | |
Machining accuracy | Square dimension accuracy | 0.01mm |
XY plane roundness | 0.015mm | |
Spindle cooling system | Refrigeration flow | ≥1.0mm |
Refrigeration pressure | 2.0-4.0kgf/cm2 | |
Environmental requirement | Working voltage | 320/50v/Hz |
Compressed gas presuure | 0.6Mpa | |
Vacuum pressure | -0.06Mpa | |
Option ATC Magazine | Linear type | Y |
Carrousel type | Y | |
Option full cover | Full cover protection | Y |
Option probe | Probe positioning | Y |
Option linear gauge | Linear gauge | Y |
Option CCD camera | CCD camera | Y |
Machine total power | / | 6kw |
Machine full cover | Dimension | 1300*1450*1900mm |
Weight | 1400kg |
CNC Engineering Service
We can provide customers with one-to-one technical services from the aspects of engineering and technical support, personnel improvement training and equipment maintenance guarantee.
Guarantee
13 months guarantee of the whole machine. All parts shall be changed free of charge if there is any problem during the warranty period. We will provide consumable parts and raw material at an agency price.
After sales service
All of engineers can speak English,If you encounter any problems, you can contact us through social media,and will reply you within 2 hours.
Packaging & Shipping

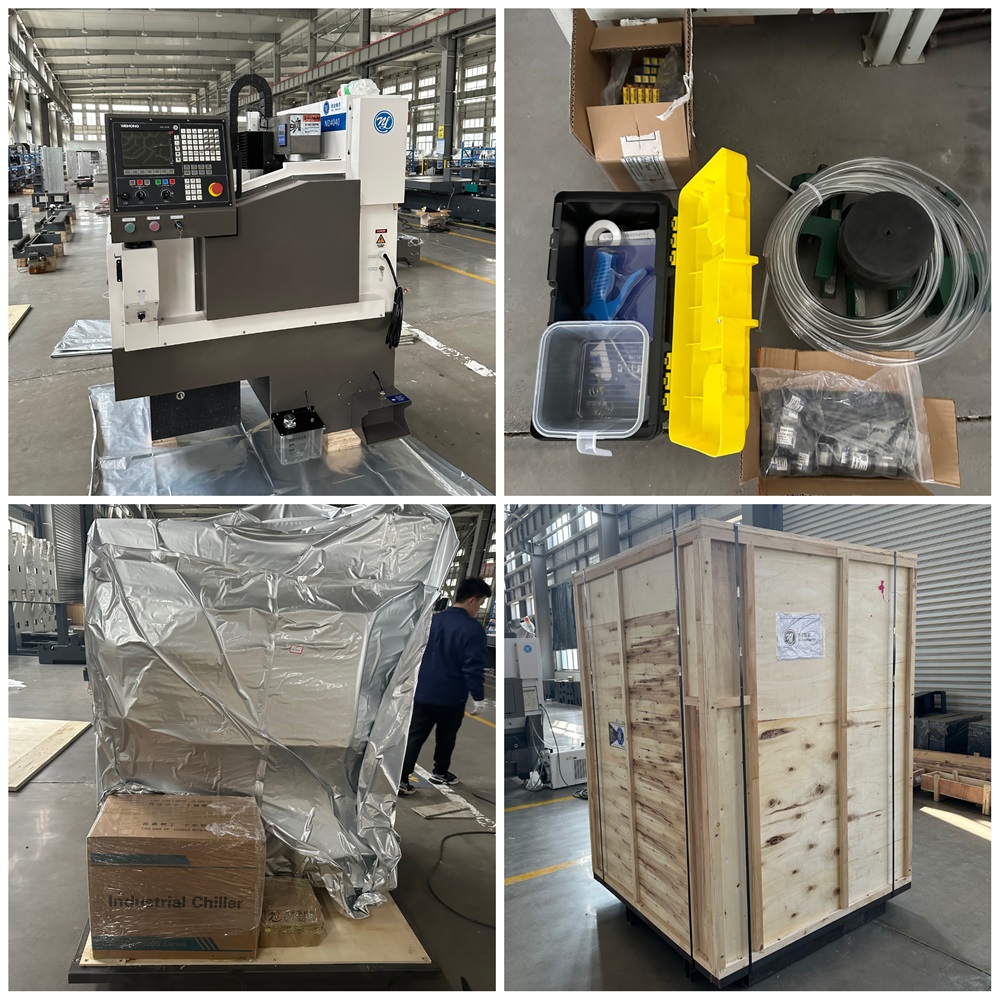

Firstly, the cnc center is to be packed with plastic sheet for cleaning and damp proofing.
